Chamfer V Groove Cutters
Chamfer v groove cutters put clean bevels, sharp detail lines and neat edge breaks into timber, board and worktops without tearing the job to bits.
If you're easing worktop edges, cutting V grooves into panels, or finishing joinery so it looks right first time, these are the router cutters to reach for. Chippies, fitters, and shopfitting teams use them for accurate decorative cuts and tidy edge work that sands back clean. Match the angle, cut depth, and shank size to the router, then get the right chamfer v groove cutters for site work without wasting money on the wrong profile. If you are sorting out wider Power Tool Accessories for trim and fit-out jobs, this is the place to start.
What Are Chamfer V Groove Cutters Used For?
- Cutting clean bevels on shelves, frames, doors, and exposed timber edges so the finished piece looks sharp instead of square and rough.
- Routing V grooves into MDF, plywood, and joinery panels for decorative detailing, fold lines, or feature work in fitted furniture and wall panelling.
- Breaking hard arrises on worktops, window boards, and stair parts so the edge is safer to handle and less likely to splinter during fitting.
- Finishing site-made joinery where a standard straight cutter will not give the detail, shadow line, or chamfer needed for a proper final look.
- Pairing with Router Jigs when repeated grooves, edge details, or matching cuts need to stay consistent across a full run of parts.
Choosing the Right Chamfer V Groove Cutters
Sorting the right one is simple: match the cutter profile to the finish you need, then make sure your router can actually run it properly.
1. Chamfer Cut or V Groove
If you are softening or detailing an outer edge, go for a chamfer cutter. If you are cutting into the face of a panel for a shadow line, fold line, or decorative run, you want a V groove cutter instead. They are not interchangeable once the job is underway.
2. Angle Matters More Than People Think
A shallow angle gives a lighter edge break and cleaner visual line. A steeper angle cuts a bolder detail but removes more material. If you are working on visible joinery or kitchen fitting router accessories for finished panels, test the angle on scrap first or you can ruin the look fast.
3. Shank Size Must Match the Router
Check whether your router takes a quarter inch, eight millimetre, or half inch shank before buying. Do not guess. The wrong shank means wasted time, poor grip in the collet, or needing another trip back to the van.
4. Think About Material and Finish
For clean timber and board work, a sharp cutter is everything. If you are doing a lot of MDF, laminated boards, or repetitive site work, spend the money on cutters that hold an edge. Cheap bits go blunt quickly and start burning or tearing the face out.
Who Uses These Cutters?
- Chippies use chamfer v groove cutters for first and second fix joinery when they need crisp edge detail on sills, trims, and made-up timber sections.
- Kitchen fitters swear by them for easing visible worktop edges, cutting neat feature grooves, and tidying bespoke end panels where off-the-shelf trims do not suit.
- Bench joiners use these joinery router cutters in the workshop for repeatable bevels and decorative lines on cabinet parts, doors, and panel work.
- Shopfitters and interior fit-out teams reach for them when producing clean grooves and bevelled details in MDF and laminated boards across full commercial installs.
Router Accessories That Make These Cutters Earn Their Keep
The right support kit keeps grooves straight, edges consistent, and stops simple routing jobs turning into rework.
1. Router Jigs
If you are repeating grooves across panels or trimming the same detail on a batch of parts, a jig saves you from slight wander and wonky runs. It is the difference between one neat set of cuts and a pile of parts that all look a bit different.
2. Guide Bushes and Edge Guides
These stop the cutter drifting off line when you are following templates, grooves, or board edges. Worth having if you want clean, repeatable joinery router cutters work instead of trying to steer everything by eye.
3. Spare Collets
A proper collet to match the cutter shank saves slippage, chatter, and marked work. Do not try to bodge the wrong size just because it nearly fits. That is how cutters creep and finishes get spoiled.
4. Kitchen Worktop Jigs
For kitchen fitting, these keep mason's joints, cut-outs, and routed edges where they should be. When you are working on expensive tops, a solid jig is a lot cheaper than replacing a bad cut.
Choose the Right Chamfer V Groove Cutters for the Job
Use this quick guide to match the cutter style to the work in front of you.
| Your Job | Chamfer V Groove Cutter Type | Key Features |
|---|---|---|
| Easing sharp timber or board edges | Chamfer cutter | Clean bevel profile, bearing or guided cut, suited to visible edge finishing |
| Cutting decorative lines in panels | V groove cutter | Sharp point, consistent groove angle, clean finish in MDF and plywood |
| Workshop repeat work on cabinet parts | Carbide tipped chamfer or V groove cutter | Longer edge life, better finish consistency, handles batch work better |
| Kitchen panel detail and worktop finishing | Fine finish chamfer cutter | Smooth edge break, accurate depth control, less sanding on visible surfaces |
| Template or jig based routing | Guided cutter matched to jig setup | Stable tracking, repeatable cuts, reduced risk of drift on site |
Common Buying and Usage Mistakes
- Buying by angle alone and ignoring the cutter diameter or depth can leave you unable to reach the profile you actually need. Check the full cutter dimensions before ordering.
- Using the wrong shank size for the router is a classic mistake and usually ends in wasted time or a cutter that does not sit properly in the collet. Always match shank to machine first.
- Trying to do finished face work with a blunt cutter leads to burning, breakout, and ragged grooves. If the cut starts looking furry or smells hot, stop and change the bit.
- Taking the full profile in one pass on MDF or hardwood puts strain on the router and can tear the edge out. Two or three lighter passes usually leave a much cleaner job.
- Freehanding repeated grooves without a guide or jig nearly always shows up once the parts are side by side. Use guides for any run where consistency matters.
Chamfer Cutters vs V Groove Cutters vs Straight Cutters

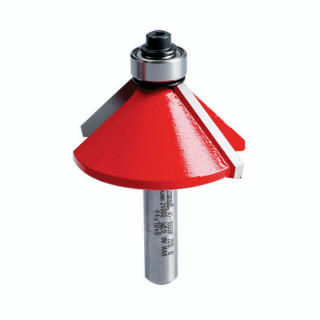

Chamfer Cutters
Best for bevelled edges, detail work, and breaking sharp corners on visible joinery. They give a finished look quickly, but they are for edge profiling rather than trenching or general cutting.
V Groove Cutters
Built for cutting into the face of a panel to create lines, grooves, or fold details. They are the better pick for decorative work and feature grooves, but not the one for flattening rebates or straight slotting.
Straight Cutters
These are your all-rounders for grooves, housings, and rebates where the walls need to stay straight. Good to keep in the box, but they will not give the edge detail or shadow line that chamfer v groove cutters are bought for.
Maintenance and Care
Clean Resin Off After Use
Pitch and resin build-up makes cutters run hotter and cut rougher. Wipe them down after timber work so they stay sharp and do not start burning the material.
Store Each Cutter Properly
Do not chuck loose router accessories in a box with spanners and screws. Keep each cutter separated so the carbide edges do not knock together and chip.
Check for Heat and Wear
If a cutter starts burning, leaving a fuzzy edge, or needs more force than usual, it is usually going off. Replace it before it ruins finished parts.
Inspect the Shank Before Fitting
A dirty or marked shank can slip in the collet and affect cut quality. Give it a quick check and clean before every job, especially after heavy site use.
Replace Damaged Cutters Early
A chipped edge will not come good with wishful thinking. Once the profile is damaged, bin it or replace it. It is cheaper than remaking a worktop end panel or cabinet door.
Why Shop for Chamfer V Groove Cutters at ITS?
Whether you need one replacement cutter for a snagging job or a full spread of chamfer v groove cutters for woodworking, joinery, and kitchen fitting, we stock the range in all the useful sizes and profiles. You will also find the wider Routing range, from Router Bits through to Kitchen Worktop Jigs, all held in our own warehouse and ready for next day delivery.
Chamfer V Groove Cutters FAQs
What are chamfer v groove cutters used for?
They are used for cutting bevelled edges and V shaped grooves in timber, MDF, plywood, and similar sheet materials. On site that usually means easing sharp edges, adding decorative detail to panels, or cutting neat lines for fitted joinery and kitchen work.
How do I choose the right chamfer v groove cutters?
Start with the finish you need, not the price. Pick a chamfer cutter for edge work and a V groove cutter for panel detail, then check the angle, cutter size, and shank size against your router. If you miss the shank size, the rest does not matter.
Which chamfer v groove cutters are best for joinery work?
For joinery work, carbide tipped cutters that hold a clean edge are usually the better buy. They cope better with repeat cuts in timber and board and leave less tearing on visible faces, which matters when the job is going straight into finishing.
How do I choose chamfer v groove cutters for kitchen fitting?
Go for cutters that leave a clean finish on laminated boards and worktop materials, and do a test cut first. In kitchen fitting, a tidy edge and accurate depth matter more than hacking material out fast, especially on visible panels and end pieces.
Can I buy chamfer v groove cutters online from ITS?
Yes. You can buy chamfer v groove cutters online from ITS and get the right profile, size, and routing gear sorted without chasing round suppliers. It is a straightforward way to top up worn cutters before the next job.
Will these cutters work with any router?
Not automatically. The main thing is shank size and whether your router has the power and base control for the cutter you are using. Always check the router collet size and the cutter spec before buying.
Do I need to use a jig with chamfer v groove cutters?
Not for every cut, but for repeat work or anything visible, it is a smart move. A jig or guide keeps grooves straight and edge details consistent, which matters a lot when panels are lined up side by side.
How do I stop breakout and burning when routing grooves?
Use a sharp cutter, do not force the feed rate, and take more than one pass if the cut is deep. Burning usually means the bit is blunt or the pass is too aggressive, and breakout is often worse when you rush the finish cut.
