Dewalt SDS Bits and Attachments
DeWalt SDS bits are built for drilling and breaking concrete, block and masonry without wasting time on blunt, wandering gear or weak shanks.
When you're drilling fixings into hard block all day or opening up for pipe and cable runs, this is the kit that earns its place. DeWalt SDS drill bits and attachments are made for proper site use, from SDS Plus bits for day-to-day anchor holes to SDS Max bits for heavier demolition and larger diameters. If you already run DeWalt combis, breakers or Dewalt FLEXVOLT More Power Tools, match the bit to the tool and the material, then get the right one ordered.
What Are DeWalt SDS Bits Used For?
- Drilling anchor and fixing holes into concrete, brick and blockwork is where DeWalt SDS Plus bits see most of their work, especially on first fix, tray runs and bracket installs.
- Chasing service routes and opening up stubborn masonry is easier with the right DeWalt SDS accessories, saving time when a standard masonry bit would just burn out or skate about.
- Boring larger diameter holes for pipe clips, cable entries and mechanical fixings is exactly what DeWalt SDS drill bits are built for when combi drills are out of their depth.
- Breaking out old render, lifting tiles and knocking back loose material suits the chisel attachments in the range, particularly on refurbs where you need control without dragging in a full breaker.
- Tackling heavy concrete and deeper drilling jobs is where DeWalt SDS Max bits come into their own on structural work, plant rooms and tougher commercial site jobs.
Choosing the Right DeWalt SDS Bits
Sorting the right one is simple: match the shank, diameter and head style to the tool and the wall in front of you.
1. SDS Plus or SDS Max
If you're drilling regular fixing holes in brick, block and concrete with a compact or mid-size rotary hammer, SDS Plus is what you want. If you're on larger diameters, deeper holes or heavier breakout work, go SDS Max or you'll just overwork the tool and slow yourself down.
2. Match the Bit Diameter to the Fixing
Do not guess. If the fixing wants a 6mm, 8mm or 10mm hole, drill exactly that and keep worn bits out of the rotation. A tired bit gives you sloppy holes and loose anchors, which is the sort of problem that comes back later.
3. Standard Drilling or Breakthrough Work
If you're mostly drilling repeated anchor holes, a solid DeWalt SDS bits set with your common sizes is the sensible buy. If you're going through thicker walls or awkward mixed masonry, look at longer lengths and specialist head designs so you're not fighting the hole halfway in.
4. Everyday Bits or Extreme Range
If the bits only come out now and then, the standard range will do the work. If you're drilling concrete day in, day out, DeWalt Extreme SDS bits are worth a look because better tip life and faster debris clearance mean fewer swaps and less downtime.
Who Uses These on Site?
- Sparkies use DeWalt SDS bits for back box fixing holes, cable route drilling and chasing block walls, and most keep a few common diameters in the van because they get chewed through fast on refurbs.
- Plumbers and heating fitters reach for DeWalt SDS drill bits when they need clean entries for pipe clips, brackets and penetrations through dense masonry that a standard percussion drill will struggle with.
- General builders and brickies use DeWalt SDS Plus bits for day-to-day concrete and block drilling, then step up to SDS Max bits when the job moves into heavier demolition or larger structural holes.
- Mechanical and electrical installers swear by these for repetitive fixing work in concrete ceilings and walls, where a proper SDS shank cuts slip and saves wrists over a long shift.
- Maintenance teams and site fitters use the chisels and attachments for quick breakout, tile lifting and patching jobs, often alongside Dewalt Hand Tools for finishing and clean-up.
The Basics: Understanding DeWalt SDS Bits
The key thing with SDS bits is not just the cutting tip. The shank locks into the hammer drill so the bit can move properly under impact, which is why it drills concrete far quicker than a standard straight shank bit.
1. SDS Plus for Most Site Drilling
This is the everyday site standard for fixings, brackets, clips and general masonry drilling. It fits lighter and mid-range rotary hammers and gives you the speed and impact action needed for repeated holes in brick, block and concrete.

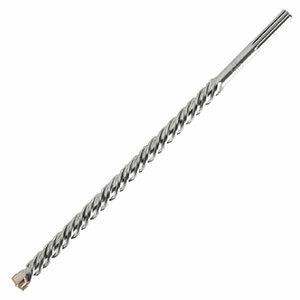

2. SDS Max for Bigger, Harder Work
SDS Max uses a larger shank and suits heavier hammers. That means more stability on larger holes, better energy transfer and less stress on the bit when you're drilling deep or breaking into tougher concrete.
3. Attachments Change the Job
A pointed chisel, flat chisel or specialist attachment turns the tool from a drill into a breaker for lighter demolition, chasing and material removal. It is a quick way of handling small breakout jobs without dragging out extra kit.
DeWalt SDS Accessories That Keep You Working
A few sensible extras stop wasted trips to the van and make hard masonry jobs less of a drag.
1. Chisel Attachments
Keep a pointed and flat chisel handy for lifting tiles, chasing channels and knocking off loose material. It saves trying to bodge breakout work with a drill bit that was never meant for it.
2. Bit Sets
A proper DeWalt SDS bits set covers the common sizes you actually use on site, which means no lost time hunting for a single 8mm that vanished somewhere in the van.
3. Storage Cases
Good storage stops carbide tips knocking into each other and keeps worn bits separate from the sharp ones. If your loose bits live in a mixed box of fixings and blades, they will not stay sharp for long.
4. Spare Batteries and Chargers
If you're running cordless SDS kit, spare power is not optional on bigger jobs. A flat battery halfway through a line of overhead fixings is a waste of time, so look at Dewalt FLEXVOLT Batteries Chargers and Mounts if that's your platform.
Choose the Right DeWalt SDS Bits for the Job
Use this as a quick guide before you load the basket.
| Your Job | Category or Type | Key Features |
|---|---|---|
| Daily fixing holes in brick and block | DeWalt SDS Plus bits | Common diameters, fast drilling, fits standard rotary hammers |
| Repeated drilling into reinforced concrete | DeWalt Extreme SDS bits | Tougher tip design, better durability, built for harder material |
| Larger holes and deeper structural drilling | DeWalt SDS Max bits | Larger shank, suits heavier hammers, better control under load |
| Light demolition and chasing out | DeWalt SDS accessories | Flat and pointed chisels, controlled breakout, quick tool change |
| Van stock for general site work | DeWalt SDS bits set | Range of useful sizes, easier storage, quicker grab and go |
Common Buying and Usage Mistakes
- Buying SDS Max bits for an SDS Plus drill is a straight mismatch. Check the tool chuck first or the bit simply will not fit and the job stops there.
- Using worn SDS bits for anchor holes gives oversized, messy holes and poor fixing hold. Once the tip is rounded off, retire it before it causes call-backs.
- Picking extra long bits for short shallow work makes drilling less accurate and more awkward overhead. Use the shortest bit that does the job cleanly.
- Trying to use a drill bit for chiselling work just kills the bit and slows everything down. Fit the correct chisel attachment when the job turns into breakout.
- Letting bits rattle around loose in the van chips the carbide and mixes sharp bits with scrap. Keep them in a case or proper DeWalt Tool Storage so you know what is still fit for use.
SDS Plus vs SDS Max vs Chisel Attachments
SDS Plus
This is the everyday choice for most trades. It is best for fixing holes, brackets, clips and general masonry drilling with standard rotary hammers. If you are doing regular site drilling rather than heavy breakout, this is the one that will get used most.
SDS Max
SDS Max is for heavier drills, larger holes and tougher concrete. It is not the bit you buy for light first fix work, but when the hole size climbs or the material gets serious, it is the right step up.
Chisel Attachments
These are for removal rather than drilling. Use them for chasing, lifting tiles, knocking off render or small demolition jobs where you need impact without the bit cutting a hole.
Bit Set vs Singles
If you burn through the same sizes every week, singles make sense for topping up fast. If you are stocking the van or covering mixed work, a set is usually the cheaper and tidier way to stay ready.
Maintenance and Care
Clean the Flutes After Use
Concrete dust packs into the flutes and hardens if you leave it. Brush bits down after the job so they clear debris properly next time and do not drag in the hole.
Check the Carbide Tip
If the tip is chipped, rounded or uneven, the bit will wander and drill slower. That is usually your sign to replace it rather than keep forcing it through the next wall.
Store Them Straight and Dry
Do not leave bits loose in a damp box at the bottom of the van. Keep them dry, separated and easy to check, especially if you are carrying a full spread of Dewalt Power Tool Accessories.
Grease the Shank if the Tool Requires It
A light smear on the SDS shank helps smooth engagement and cuts wear in the chuck. Do not overdo it, though, because excess grease just drags dust where you do not want it.
Replace Worn Common Sizes Early
Your 6mm, 8mm and 10mm bits usually wear first because they do most of the graft. Change them before they start giving loose fixings and turning quick jobs into snagging.
Why Shop for DeWalt SDS Bits at ITS?
Whether you need single DeWalt SDS Plus bits, heavier SDS Max bits, chisels, or a full van-stocked set, we carry the proper range for site work. It is all picked from our own warehouse, in stock and ready for next day delivery, so you can get the right bit on site without hanging about.
DeWalt SDS Bits FAQs
What SDS bits does DeWalt make?
DeWalt makes a proper spread of SDS bits and attachments, including SDS Plus bits, SDS Max bits, chisels, sets and specialist concrete and masonry options. In real terms, that covers everyday fixing holes, heavier structural drilling and light demolition without having to jump between random brands.
What is the difference between DeWalt SDS Plus and SDS Max?
SDS Plus is the smaller system for standard rotary hammers and most day-to-day site drilling. SDS Max is larger, tougher and built for heavier hammers, bigger holes and harder demolition work. If you try to use the wrong one, it either will not fit or it will be the wrong tool for the load.
Are DeWalt SDS bits compatible with other brands of SDS drill?
Yes, if the fitting matches. A DeWalt SDS Plus bit will fit any proper SDS Plus chuck, and the same goes for SDS Max. Just check the tool type before you buy, because SDS Plus and SDS Max are not cross compatible.
What sizes do DeWalt SDS bits come in?
They cover the usual trade sizes for fixings and penetrations, from the small diameters you use every day right up to larger SDS Max sizes for heavier work. You will find short and long lengths too, so choose based on the fixing, embedment depth and wall thickness rather than just grabbing whatever is on top.
Are DeWalt Extreme SDS bits worth it for daily concrete drilling?
Yes, if concrete is your regular work. They tend to hold an edge better and cope with repeated hard drilling more cleanly than budget bits. If you only drill the odd hole each month, standard bits will usually do you fine.
Should I buy singles or a DeWalt SDS bits set?
Buy a set if you are stocking the van or covering mixed jobs and want the common sizes ready to hand. Buy singles when you already know which bits get hammered most on your work and just need quick replacements.
Will these bits cope with proper site abuse?
They are built for trade use, not just occasional DIY drilling, but they are still consumables. Used with the right hammer and not overheated or battered sideways, they will put up with the normal abuse of concrete and masonry work just fine.
What else should I sort while I am ordering SDS bits?
Check your chisels, spare batteries, storage and everyday site tools while you are at it. It is worth sorting the full setup in one go so you are not caught short halfway through a job, especially if your van stock is due a tidy up.
