Dewalt SDS MAX
DeWalt SDS Max bits are built for big holes, tough concrete and hard demolition work when a standard bit or chisel just will not touch it.
When you're drilling through reinforced concrete, opening up for pipe runs, or breaking out stubborn block, this is the end of the rack you reach for. DeWalt SDS Max drill bits, chisels and demolition bits are made for full-size rotary hammers that earn their keep on site. Check the length, diameter and shank before you buy, and match the bit to the actual job so you're not fighting the tool all day.
What Are DeWalt SDS Max Bits Used For?
- Drilling large diameter holes through concrete floors, lintels and block walls for ducting, pipework, cable routes and heavy fixings is where DeWalt SDS Max bits make sense.
- Chasing into old reinforced slabs and hard masonry on refurb jobs is easier with DeWalt SDS Max hammer drill bits that keep cutting when lighter SDS Plus gear starts struggling.
- Breaking out tiles, render, brick edges and failed concrete with a DeWalt SDS Max chisel saves time on strip-out and prep before the next trade comes in.
- Opening service penetrations and knocking out stubborn sections of blockwork with DeWalt SDS Max demolition bits gives groundworkers, sparkies and plumbers the reach and impact they need.
- Cleaning out cracked concrete and loose material before repair work is another solid use, especially where smaller chisels bounce about and barely move the job on.
Choosing the Right DeWalt SDS Max Bits
Sorting the right one is simple: match the bit or chisel to the material and the size of the hole, not just whatever is cheapest.
1. Drill Bit or Chisel
If you are boring clean holes for anchors, pipe clips or service routes, go with DeWalt SDS Max drill bits. If you are stripping off render, lifting tile beds or breaking out concrete edges, you need a DeWalt SDS Max chisel or demolition bit instead.
2. Diameter Matters
If you are only fixing bolts and anchors, do not overbuy on diameter. For bigger penetrations through block and concrete, choose the exact size you need so you are not reaming holes out afterwards or weakening the fixing.
3. Length for Access and Depth
Shorter bits are easier to control and usually faster on shallow holes. If you are going through thick walls, deep slabs or built-up floor layers, step up to a longer DeWalt SDS Max bit so you are not stopping halfway and guessing the line.
4. Match the Hammer to the Work
Do not stick a huge bit in an underpowered hammer and expect miracles. If you are doing regular heavy drilling and breakout work, pair these with Dewalt FLEXVOLT More Power Tools so the tool can actually drive the accessory properly.
Who Uses These on Site?
- Groundworkers use DeWalt SDS Max concrete bits for drilling fix points, dowel holes and service entries into slabs, kerbs and heavy concrete where lighter kit just wastes time.
- Sparkies reach for DeWalt SDS Max drill bits when they need bigger penetrations for tray, containment and cable routes through plant rooms, risers and old concrete walls.
- Plumbers and HVAC fitters swear by them for opening up solid walls and floors for larger pipe runs, brackets and anchor points, especially on commercial refurbs.
- Demolition teams and builders keep a DeWalt SDS Max chisel in the van for breaking back damaged brickwork, lifting old screed and stripping stubborn finishes before rebuilds.
- General builders and site maintenance teams use them when the job turns from neat drilling to proper breakout work and they need bits that will take repeated abuse.
The Basics: Understanding DeWalt SDS Max Bits
The important bit is not just the cutting head. SDS Max is a shank system for bigger rotary hammers, built to transfer more hammer energy for heavier drilling and demolition work.
1. SDS Max Shank
This larger shank locks into an SDS Max chuck and lets the bit move as the hammer mechanism works. On site, that means better energy transfer for concrete drilling and far less faff than using the wrong fitting.
2. Drill Bits for Holes
SDS Max drill bits are for boring into concrete, block and masonry where you need a true hole for anchors, fixings or service runs. The flutes clear spoil as you drill, which matters when you are working deep and cannot keep pulling out every few seconds.
3. Chisels for Breakout
SDS Max chisels and demolition bits are for breaking, lifting or chasing rather than drilling. That is what you want when the job is strip-out, edge breaking or knocking back material, not making a neat round hole.
DeWalt SDS Max Accessories That Keep the Job Moving
A couple of smart add-ons stop wasted trips to the van and keep your drilling and demolition work cleaner and quicker.
1. Dust Extraction Attachments
Get a proper dust attachment if you are drilling overhead or inside finished areas. You will save yourself a load of clean-up, keep the hole visible and make life easier when working to tighter site dust rules.
2. Carry Cases and Storage
Loose long bits and chisels get battered fast in the van. Keep them straight and easier to sort with DeWalt Tool Storage so you are not digging through damaged kit first thing in the morning.
3. Spare Batteries and Chargers
If your SDS Max hammer is cordless, a spare power setup is a no-brainer. Heavy concrete drilling eats runtime, so keep Dewalt FLEXVOLT Batteries Chargers and Mounts sorted or you will be waiting around halfway through the ugly part of the job.
Choose the Right DeWalt SDS Max Bits for the Job
Use this quick guide to sort the right bit or chisel before you start drilling blind.
| Your Job | Bit or Type | Key Features |
|---|---|---|
| Fixing anchors into concrete | SDS Max hammer drill bit | Accurate diameter, fast spoil removal, solid drilling in dense masonry |
| Running larger pipe or cable penetrations | Long SDS Max concrete bit | Extra reach for thick walls and floors, better line through deep material |

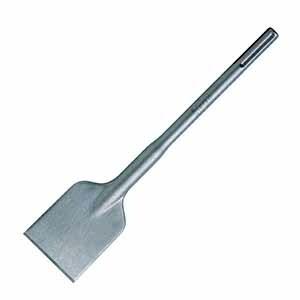

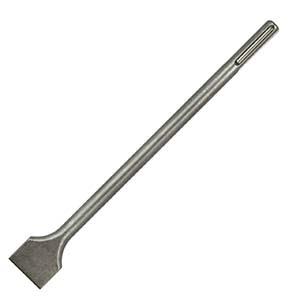

| Stripping tile beds or render | SDS Max flat chisel | Wide edge for lifting material cleanly without point loading one spot |

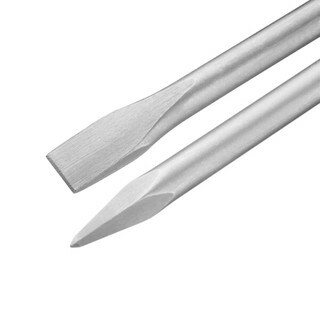

| Breaking out stubborn block or concrete edges | SDS Max pointed chisel | Focused impact for starting cracks and concentrated breakout work |
| General heavy site drilling and demolition | Mixed SDS Max accessories | Bit and chisel options ready for drilling, chasing and breakout on one job |
Common Buying and Usage Mistakes
- Buying SDS Plus by mistake instead of SDS Max is the classic one. The shank will not fit your hammer, so always check the chuck type before you order.
- Picking a bit longer and wider than the job needs slows drilling down and makes the tool harder to control. Match the diameter and length to the fixing or penetration, not guesswork.
- Using a drill bit when the job really needs a chisel wastes time and cooks the accessory. If you are breaking, lifting or chasing, swap to the right DeWalt SDS Max demolition bit.
- Running blunt or chipped bits for too long hammers the machine and gives poor holes. Once the cutting edge is gone, replace it before it starts costing you time.
- Leaving long bits loose in the van leads to damaged tips and bent shafts. Store them properly with the rest of your Dewalt Power Tool Accessories so they are ready for the next job.
SDS Max Drill Bits vs SDS Max Chisels vs SDS Plus Bits
SDS Max Drill Bits
These are for proper hole making in concrete, block and masonry. Buy these if the end result needs to be a clean, usable hole for anchors, rod, pipe or cable routes.
SDS Max Chisels
These are for breaking and stripping, not neat drilling. Go this way for lifting tiles, knocking off render, breaking back concrete and general demolition where a round hole is not the goal.
SDS Plus Bits
Fine for smaller fixing holes and lighter rotary hammers, but they are not built for the heavier impact and larger diameters that SDS Max jobs demand. If you are in dense concrete all day, SDS Max is the right end of the market.
Maintenance and Care
Clean the Flutes and Shank
Brush off packed concrete dust after use, especially around the flutes and shank. Built-up muck stops the bit seating properly and can make chuck wear worse over time.
Check for Tip Wear
If the carbide tip is chipped or the cutting head is rounded off, do not kid yourself that it has got another month in it. A worn bit drills slower, heats up more and gives rougher holes.
Store Long Bits Properly
Do not throw long SDS Max bits under pipes and offcuts in the van. Keep them straight, dry and separated so the tips do not knock together and crack.
Lightly Grease the Shank if Required
A light smear of the correct grease on the shank can help smooth insertion and reduce wear in the chuck. Do not overdo it or you will just collect abrasive dust.
Replace Bent or Mushroomed Chisels
Once a chisel is badly deformed or the working end is spent, bin it. Trying to get one more day out of damaged demolition bits usually means slower progress and more punishment for the hammer.
Why Shop for DeWalt SDS Max Bits at ITS?
Whether you need DeWalt SDS Max drill bits for anchor holes, long concrete bits for service runs, or chisels for breakout work, we stock the proper range in one place. You will also find matching Dewalt Hand Tools for prep and finishing around the job. It is all in our own warehouse, in stock, and ready for next day delivery when the work cannot wait.
DeWalt SDS Max Bits FAQs
What is SDS Max?
SDS Max is a larger shank system used on bigger rotary hammers and breakers. It is built for heavier drilling and demolition than SDS Plus, with better energy transfer for concrete, block and hard masonry jobs.
What SDS Max bits does DeWalt make?
DeWalt makes SDS Max drill bits for concrete and masonry drilling, plus chisels and demolition bits for breakout and strip-out work. That usually covers pointed chisels, flat chisels and a range of diameters and lengths in hammer drill bits.
Are DeWalt SDS Max bits compatible with all SDS Max rotary hammers?
Yes, if the machine has a genuine SDS Max chuck, DeWalt SDS Max bits are generally compatible. Still check the tool spec before buying, because some hammers have limits on maximum diameter and recommended working range.
What is the maximum diameter of DeWalt SDS Max drill bits?
That depends on the exact bit range and length, so always check the product listing. The key thing is not just the biggest bit available, but whether your SDS Max hammer is rated to drive it properly in concrete.
Will these DeWalt SDS Max bits cope with reinforced concrete?
Yes, they are built for heavy concrete work, but rebar is still hard going and progress will depend on the exact bit design and the hammer behind it. If you hit steel all day, expect slower drilling and more wear than plain block or slab.
Are SDS Max chisels worth keeping separate from drill bits?
Definitely. Chisels get battered, dusty and blunt in a different way to drill bits, so keeping them separate makes it easier to grab the right one quickly and stops good drill bits getting knocked about in storage.
