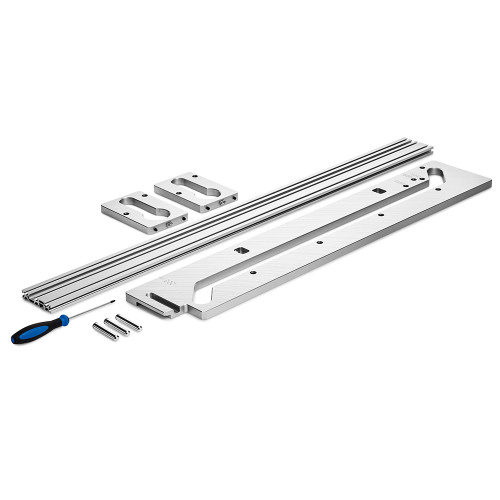

Festool APS 900/3 Worktop Template
(632644)£374.99
EX VAT
(£449.99 INC VAT)
Festool APS 900/3 Worktop Template
Key Features
- For corner and panel connectors with depths of up to 900 mm
- Robust routing template made from aluminium
- For corner and panel joints with a fixed stop of 600, 635, and 650 mm, or adjustable up to 900 mm panel depth.
- For groove cutters with 14 mm diameter and copying rings with 30 mm diameter
£374.99
EX VAT
-
Free Gift
-
Promotion:
-
Promotion:
-
Promotion:
-
Promotion:
-
Promotion:
-
Promotion:
Added for collection
Festool APS 900/3 Worktop Template
Description
-
Product Code:FES578727
-
Model Number: 578727
-
Brand: Festool
-
Barcode: 4014549463734
-
Taxonomy: Hardware > Tool Accessories > Router Accessories
-
Category: Router Tables & Accessories
Picture this: you're standing in front of a new kitchen worktop, ready to join two pieces at a perfect 90° angle - without the hassle of guesswork or extra setups.
The Festool APS 900/3 Worktop Template from ITS is that partner you've been waiting for. It's built from robust anodised aluminium, locking firmly to your worktop with an integrated clamp (compatible with Festool lever clamps), so once it's in place, it stays put - even if you need to pass your router over the same groove more than once.
With the fence fixed, you effortlessly route panels of 600 or 650 mm depth, then slide it forward and go all the way to 900 mm.
Need to go deeper? Festool has thought of that too with extension profiles that push your capability past the 900 mm mark. That means working on oversized islands or secret bars is no problem.
And hollows and grooves for fittings? Easily done using two freely position-able sub-templates to recess conventional connectors under the surface—again, in the same run, without switching jigs.
The APS 900/3 plays beautifully with your OF 2200 or OF 1400 router, requiring just a 14 mm groove cutter and 30 mm copying ring. Mounting is quick - a simple clasp-and-bolt approach works in seconds, so you’re routing, not fiddling around.
You’ll get clean, consistent corner joints that line up perfectly - time after time. No alignment headaches, no choppy finishes.
The sturdy aluminium build won’t warp or twist, even in humid conditions. And because everything clamps firmly, you’re working safer and faster, with one set-up instead of three or four.
Product is also in :
Specification
| Dimensions | 1000 x 380 x 16 mm |
| Buying Option | Worktop Jig |
| Pack Size | 1 |
| Product Weight | 1.4kg |
| Routing Jig Type | Worktop Jig |
| Jig Thickness | 16mm |
Customer Reviews
Ask a Question
Questions Answered
Key Features
- For corner and panel connectors with depths of up to 900 mm
- Robust routing template made from aluminium
- For corner and panel joints with a fixed stop of 600, 635, and 650 mm, or adjustable up to 900 mm panel depth.
- For groove cutters with 14 mm diameter and copying rings with 30 mm diameter
Description
Description
-
Product Code:FES578727
-
Model Number: 578727
-
Brand: Festool
-
Barcode: 4014549463734
-
Taxonomy: Hardware > Tool Accessories > Router Accessories
-
Category: Router Tables & Accessories
Picture this: you're standing in front of a new kitchen worktop, ready to join two pieces at a perfect 90° angle - without the hassle of guesswork or extra setups.
The Festool APS 900/3 Worktop Template from ITS is that partner you've been waiting for. It's built from robust anodised aluminium, locking firmly to your worktop with an integrated clamp (compatible with Festool lever clamps), so once it's in place, it stays put - even if you need to pass your router over the same groove more than once.
With the fence fixed, you effortlessly route panels of 600 or 650 mm depth, then slide it forward and go all the way to 900 mm.
Need to go deeper? Festool has thought of that too with extension profiles that push your capability past the 900 mm mark. That means working on oversized islands or secret bars is no problem.
And hollows and grooves for fittings? Easily done using two freely position-able sub-templates to recess conventional connectors under the surface—again, in the same run, without switching jigs.
The APS 900/3 plays beautifully with your OF 2200 or OF 1400 router, requiring just a 14 mm groove cutter and 30 mm copying ring. Mounting is quick - a simple clasp-and-bolt approach works in seconds, so you’re routing, not fiddling around.
You’ll get clean, consistent corner joints that line up perfectly - time after time. No alignment headaches, no choppy finishes.
The sturdy aluminium build won’t warp or twist, even in humid conditions. And because everything clamps firmly, you’re working safer and faster, with one set-up instead of three or four.
Specification
- Dimensions 1000 x 380 x 16 mm
- Buying Option Worktop Jig
- Pack Size 1
- Product Weight 1.4kg
- Routing Jig Type Worktop Jig
- Jig Thickness 16mm
