Guide Drill Bits
Guide drill bits are designed to drill accurate pilot holes and prevent wandering. Perfect for hinge fitting, bracket installation and repeatable hardware alignment in cabinetry or carpentry work.
Who Uses Guide Bits?
Popular with trades needing pinpoint accuracy for screws, hinges or fittings:
- Cabinet Makers – Align hinges, drawer slides and carcass fittings consistently.
- Joiners – Pre-drill frames and joinery work for smooth assembly and tight joints.
- Fitters – Install brackets and fixtures in repetitive setups.
- Kitchen Installers – Fix door hinges and magnetic catches with precision holes.
These Bits Are Ideal for:
- Drilling pilot holes for screws in timber or MDF
- Hinge hole alignment in cabinets or carcasses
- Fitting brackets or clips in symmetrical layouts
- Centred drilling with no bit drift or breakout
- Installing door hardware without marking errors
How to Choose the Right Guide Bit
Different styles suit different fixing types and drill types. Here’s what to check:

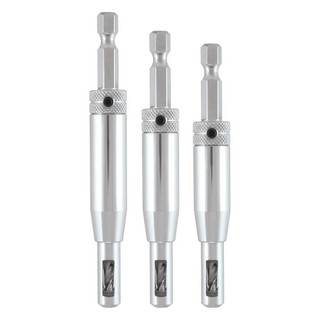

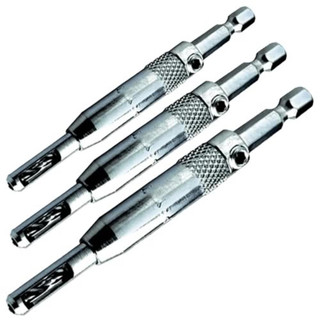

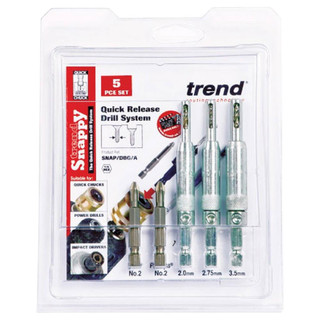

1. Self-Centring Hinge Bits
Spring-loaded nose guides the bit dead-centre into hinge holes, preventing drift and marking.

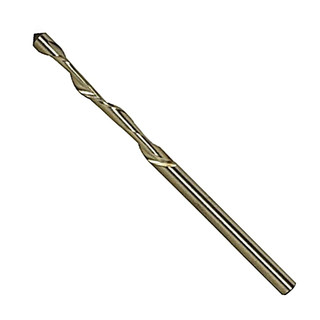

2. Straight Pilot Bits
Used for basic screw prep, especially in hardwood where screws may split the grain.

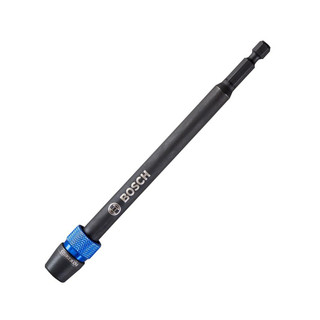

3. Quick-Change Shanks
Switch between drill and driver in seconds when used with magnetic adaptors – ideal for fitters on fast-paced installs.
Accessories for Use with Guide Bits
Stay accurate and efficient with these essential extras:
1. Depth Stops
Ensure consistent pilot depth across fittings for clean screw seating.
2. Magnetic Bit Holders
Keep screws held securely during install and speed up assembly.
3. Hinge Jigs
Pair with hinge jigs to align your hardware perfectly and avoid rework.
Frequently Asked Questions
What are guide drill bits used for?
They’re used for making accurate pilot holes, aligning hinges and stopping the bit from wandering on smooth surfaces.
Are these bits suitable for MDF?
Yes – especially self-centring types, which prevent splitting and give a clean recess for screws in veneered boards.
Do guide bits fit all drills?
Most have standard hex shanks for quick-change chucks or cordless drills. Just ensure the chuck can grip 1/4" shanks.
Can they be used for metal?
Guide bits are generally for timber. Use HSS pilot bits for metal – and avoid centring types as they don’t guide well in steel.
What sizes do they come in?
Common sizes range from 2mm to 4mm pilot holes. Hinge versions match standard hardware screw diameters automatically.
