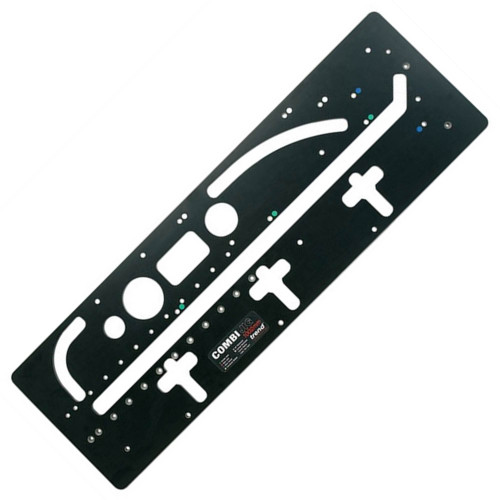

Combi 1002 Worktop Jig
Description
-
Product Code:TRECOMBI1002
-
Model Number: COMBI1002
-
Brand: Trend
-
Barcode: 5027654531129
-
Category: Kitchen Worktop Jigs
-
Taxonomy: Hardware > Tool Accessories > Jigs
Trend COMBI1002 1000mm worktop jig for up to 1000mm wide worktop now with cable tidy insert & circular hinge cut apertures.
A single male and female template in 16mm solid laminate, facility to join boards from 450mm to 1000mm wide, facility to cut 22.5 degree mitre corners for hob units.
Intergral template slots for rounding and mitring of peninsular worktop corners for cable tidy inserts and a circular concealed hinge aperture and 3/4 inch BSP holes for mixer taps.
Three alloy location bushes and a width-setting stop. Colour coded pin location for quick and easy use. Four bolt recess slots for connection bolts, to allow thre bolts in 600mm wide worktop.
Cuts out of square joints (max. 3 degrees).
Specifications:
Length: 1200mm
Width: 376mm
Thickness: 16mm
Female cut material width loss: 23mm
Weight: 9.6kg
End cut: 45 degrees
Corner Mitre Joint: 22.5 degrees
Peninsula radius: approx. 410mm
Corner radius: approx. 75mm
Circular Hinge diameter: 35mm
Authorised Trend Stockist
ITS are an authorised stockist of Trend Products, we only sell 100% genuine Power Tools and Accessories, so you can trust us for all the tools you need!
Specification
| Buying Option | Single |
| Pack Size | Pack of 1 |
| End Cut | 45° |
| Corner Radius' | 75mm |
| Corner Mitre Joint | 22.5° |
| Bolt Recesses | 4 |
| Female Cut Material Width Loss | 23mm |
| Routing Jig Type | Worktop Jig |
| Jig Thickness | 16mm |
Warranty Information
This product comes with a standard one year warranty covering manufacturing fault. For more information on this products specific warranty details please contact us directly on Email: sales@its.co.uk or Phone: 0208 532 5000 (Monday - Saturday 8am - 5pm) with the ITS Order Ref (above) or the Product Title
