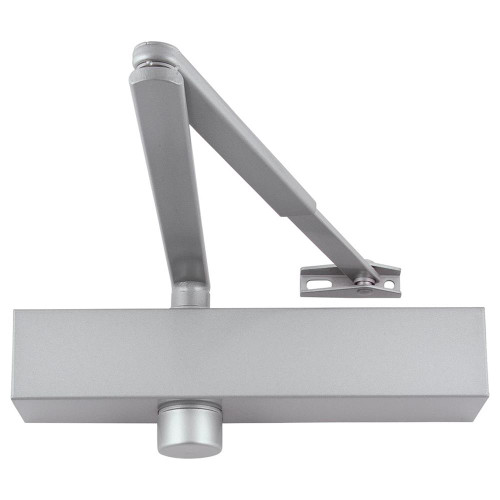

Arrone AR3500 Overhead Door Closer - Silver
ARRONE aluminium overhead door closing device for wooden door. Power size 2 to 4 adjustable by spring tension for max door width: 1100mm, max door weight 80kg.
For closing, latching, backcheck with silver square co
... Read More Read MoreKey Features
- Silver aluminium square cover
- Silver aluminium arm finish
- Rack & pinion mechanism type
- Backcheck, delayed action, spring adjustment, closing/latching speed mechanism function
- Power size: 2 to 4
£34.99
EX VAT
-
Free Gift
-
Promotion:
-
Promotion:
-
Promotion:
-
Promotion:
-
Promotion:
-
Promotion:
Description
-
Product Code:HOPAR3500
-
Model Number: AR3500-S-SE
-
Brand: Arrone
-
Barcode: 5051358077331
-
Category: Door Closers
ARRONE aluminium overhead door closing device for wooden door. Power size 2 to 4 adjustable by spring tension for max door width: 1100mm, max door weight 80kg.
For closing, latching, backcheck with silver square corner cover andarm finish. Rack & pinion mechanism function: Backcheck, delayed action, spring adjustment, closing/latching speed
Successfully type tested for conformity to all the requirements of BS EN 1154:1997. Included in a successful fire test to BS EN 1634 Part 1. Assessed for use on 30, 60 and 120 minutes timber fire doors and 240 minutes on steel fire doors. Certification: CE Marked: 1121-CPD-AD0009; Certifire Approved: CF294; DoP: HUK0019.
The AR3500 can satisfy the opening force recommendations of BS 8300 and ADM when fitted in Fig 1 to a door with minimum width of 938mm according to third party data. However other installed hardware, door seals and differential air pressure will affect the products as fitted performance meaning that the door closer alone cannot allow compliance to BS 8300 and ADM.
Product is also in these categories
Specification
Buying Option | Silver |
Pack Size | 1 |
Product Weight | 1.1kg |
Product Material | Aluminium |
Colour | Silver |
Finish | Silver |
Fixings Supplied | Yes |
Max Door Width / Height | 1100mm Wide |
Key Features
- Silver aluminium square cover
- Silver aluminium arm finish
- Rack & pinion mechanism type
- Backcheck, delayed action, spring adjustment, closing/latching speed mechanism function
- Power size: 2 to 4
Description
Description
-
Product Code:HOPAR3500
-
Model Number: AR3500-S-SE
-
Brand: Arrone
-
Barcode: 5051358077331
-
Category: Door Closers
ARRONE aluminium overhead door closing device for wooden door. Power size 2 to 4 adjustable by spring tension for max door width: 1100mm, max door weight 80kg.
For closing, latching, backcheck with silver square corner cover andarm finish. Rack & pinion mechanism function: Backcheck, delayed action, spring adjustment, closing/latching speed
Successfully type tested for conformity to all the requirements of BS EN 1154:1997. Included in a successful fire test to BS EN 1634 Part 1. Assessed for use on 30, 60 and 120 minutes timber fire doors and 240 minutes on steel fire doors. Certification: CE Marked: 1121-CPD-AD0009; Certifire Approved: CF294; DoP: HUK0019.
The AR3500 can satisfy the opening force recommendations of BS 8300 and ADM when fitted in Fig 1 to a door with minimum width of 938mm according to third party data. However other installed hardware, door seals and differential air pressure will affect the products as fitted performance meaning that the door closer alone cannot allow compliance to BS 8300 and ADM.
Specification
- Buying Option Silver
- Pack Size 1
- Product Weight 1.1kg
- Product Material Aluminium
- Colour Silver
- Finish Silver
- Fixings Supplied Yes
- Max Door Width / Height 1100mm Wide
