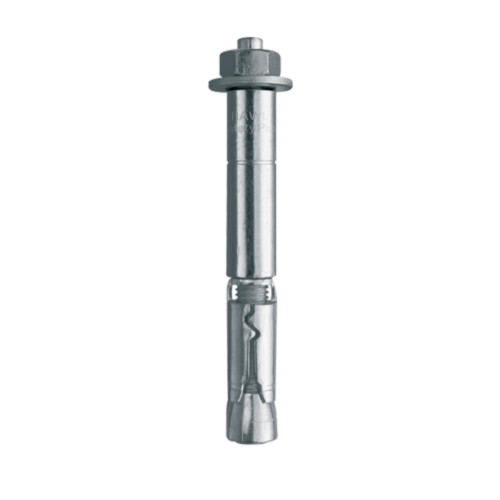

Rawlplug RAWBOLT Projecting Bolts M8 x 90mm (50)
Key Features
- High performance steel expansion anchor
- Maximum shear load performance
- Unique zig-zag feature provides balanced expansion
- Maximum load carrying capacity
£12.00
YOU SAVE £1.00 (8%)
£11.00
EX VAT
-
Free Gift
-
Promotion
-
Promotion
-
Promotion
-
Promotion
-
Promotion
Categories you might like
Description
- Product Code:RAW44560
- Model Number: 44560
- Brand: Rawlplug
- Barcode: 5906675283678
Rawlplug 44560 RAWBOLT Projecting Bolts M8 x 90mm (50).
A high performance steel expansion anchor, suitable for the most demanding safety critical applications.
This range offers exceptional tension, shear and combined load performance in concrete.
TYPICAL APPLICATIONS
- Structural steel
- Masonry support
- Cladding restraints
- Road signs
- Heavy machinery
- Racking systems
- Industrial doors
- Safety barriers.
Features an 8.8 grade stud with slot for final adjustment. High strength steel washer. Sleeve provides maximum shear load performance. Integral controlled collapse and anti-rotation feature ensures fixture is firmly secured. Unique zig-zag feature provides balanced expansion ensuring secure setting and maximum load carrying capacity. Case-hardened nut with optimum angle taper for maximum expansion. Nut and washer allow for fixture to be removed and relocated easily.
Dimensions:
Size: M8
Length: 90mm
Hole Diameter: 14mm
Max Fixture: 25mm
Quantity: 50
Specification
Pack Size | 50 |
Product Weight | 1.0kg |
Product Length | 90mm |
Diameter (Metric) | 8mm |
Warranty Information
This product comes with a standard one year warranty covering manufacturing fault. For more information on this products specific warranty details please contact us directly on Email: sales@its.co.uk or Phone: 0208 532 5000 (Monday - Saturday 8am - 5pm) with the ITS Order Ref (above) or the Product Title
Key Features
- High performance steel expansion anchor
- Maximum shear load performance
- Unique zig-zag feature provides balanced expansion
- Maximum load carrying capacity
Description
Description
- Product Code:RAW44560
- Model Number: 44560
- Brand: Rawlplug
- Barcode: 5906675283678
Rawlplug 44560 RAWBOLT Projecting Bolts M8 x 90mm (50).
A high performance steel expansion anchor, suitable for the most demanding safety critical applications.
This range offers exceptional tension, shear and combined load performance in concrete.
TYPICAL APPLICATIONS
- Structural steel
- Masonry support
- Cladding restraints
- Road signs
- Heavy machinery
- Racking systems
- Industrial doors
- Safety barriers.
Features an 8.8 grade stud with slot for final adjustment. High strength steel washer. Sleeve provides maximum shear load performance. Integral controlled collapse and anti-rotation feature ensures fixture is firmly secured. Unique zig-zag feature provides balanced expansion ensuring secure setting and maximum load carrying capacity. Case-hardened nut with optimum angle taper for maximum expansion. Nut and washer allow for fixture to be removed and relocated easily.
Dimensions:
Size: M8
Length: 90mm
Hole Diameter: 14mm
Max Fixture: 25mm
Quantity: 50
Specification
- Pack Size 50
- Product Weight 1.0kg
- Product Length 90mm
- Diameter (Metric) 8mm
Warranty Information
Warranty Information
This product comes with a standard one year warranty covering manufacturing fault. For more information on this products specific warranty details please contact us directly on Email: sales@its.co.uk or Phone: 0208 532 5000 (Monday - Saturday 8am - 5pm) with the ITS Order Ref (above) or the Product Title
