Bosch Pro Drill & Screwdriver Bit Holders Bosch Pro Drill & Screwdriver Bit Holders

Bosch Pro Drill & Screwdriver Bit Holders

When short bits won't reach recessed screws, a Bosch Professional bit holder adds reach and keeps the bit seated in your driver.

For kitchen fitting, studwork and maintenance, match the holder to the tool: magnetic retention helps with bit changes, while impact driving needs an impact-rated model. Choose the length and retention system for your fixings.

What Are Bosch Professional Bit Holders Used For?

  • Drive cabinet screws through recessed fixing holes by using a holder that gives a short screwdriver bit enough reach without the chuck catching the carcass.
  • Switch between screw profiles during kitchen fitting or refurbishment work without opening and closing a drill chuck for every bit change.
  • Keep compatible steel bits seated with a magnetic holder when moving between hinge screws, brackets and other repeated fixings.
  • Drive timber fixings with a suitable impact-rated holder when using an impact driver, rather than putting a standard holder under repeated hammering loads.

Choosing the Right Bosch Professional Bit Holder

Check the tool rating first, then buy only as much reach as the fixing needs.

1. Standard or Impact-Rated

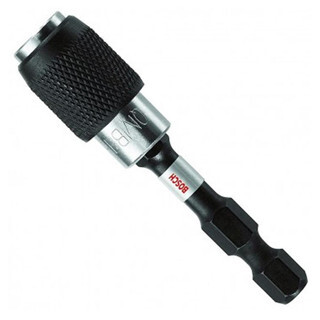

If you're using an impact driver, choose a holder explicitly rated for impact use. A hex shank alone does not establish that rating. Look at Bosch Professional Impact Bit Holders for repeated impact driving, and check that the bit is suitable too.

2. Magnetic or Mechanical Retention

A Bosch Professional magnetic bit holder uses a magnet to retain a compatible steel bit. If bits keep getting left in tight screw heads, look for a quick-change holder with a mechanical locking mechanism. Check the individual design rather than assuming every holder locks.

3. Reach and Clearance

For exposed screws, keep the holder short to reduce wobble and make the driver easier to control. For recessed fixings, check both the working length and the holder's outside diameter; extra reach is no help if the sleeve cannot enter the recess.

4. Shank and Bit Compatibility

Check the holder's input shank, output size and accepted bit type. Many use a 1/4-inch hex connection, but locking mechanisms can require a particular bit shank. When pairing with Bosch Professional Drills and Drivers, check the tool's chuck or bit socket as well as its operating mode.

Who Uses Bosch Professional Bit Holders?

Kitchen fitters and joiners use holders to reach carcass fixings and change between hinge and assembly screws. Sparkies and maintenance teams keep them with their driver bits for brackets, enclosures and repair work. When sorting the van kit, the wider Bosch Professional Screwdriver Bits & Bit Holders range lets you match the bit profile and holder to the fixing.

The Basics: Understanding Bit Holder Retention

The hex socket transfers the turning force. The retention system keeps the bit from falling or pulling out, and that distinction matters when choosing a holder.

1. Magnetic Retention

A magnet attracts the steel bit inside the holder. Depending on the bit, screw and holder design, it can also help hold a screw on the tip, but do not assume every magnetic holder will securely support every fixing.

2. Mechanical Locking

A locking holder physically engages a compatible bit shank, usually with a sleeve-operated release. This helps stop the bit pulling free when withdrawing it from a tight screw head. Mechanical retention does not, by itself, mean the holder is impact-rated.

Accessories to Keep Your Bit Holder Working Properly

The right bits and organised storage prevent damaged fixings and wasted time hunting for replacements.

1. Correctly Sized Screwdriver Bits

A holder cannot make up for a worn or wrongly sized tip. Choose Bosch Professional Screwdriver Bits to match the screw profile, holder compatibility and driving application; replace rounded tips before they chew through another fixing.

2. Bit Storage Case

Keep holders and spare bits in a compartmented case rather than loose among screws and swarf. It makes missing sizes obvious before you leave the van and keeps grit out of locking sleeves.

Choose the Right Bosch Professional Bit Holder for the Job

Match the holder to the driver, access and frequency of bit changes.

Your Job Holder Type Key Features
General screwdriving with a drill driver Standard magnetic holder Compatible hex connection, magnetic bit retention and suitable working length.
Frequent changes between fixing types Quick-change locking holder Accessible release sleeve and compatibility with the bits you use.
Repeated timber fixing with an impact driver Impact-rated holder Explicit impact rating, compatible shank and impact-rated bits.
Recessed cabinet and bracket screws Longer holder with suitable clearance Enough reach for the recess without an oversized sleeve obstructing access.

Common Buying and Usage Mistakes

  • Assuming every hex-shank holder suits an impact driver can lead to premature failure. Check for an explicit impact rating before using it under impact loads.
  • Buying the longest holder for every job adds unnecessary movement at the tip. Use the shortest holder that gives proper access.
  • Treating magnetic retention as a mechanical lock can leave the bit stuck in the screw head. Choose a compatible locking holder where pull-out is a repeated problem.
  • Ignoring sleeve diameter can leave you unable to reach a recessed screw despite having enough length. Check the available clearance before ordering.

Magnetic vs Quick-Change vs Impact-Rated Bit Holders

Magnetic Holders

Choose magnetic retention for straightforward bit changes and general screwdriving. It keeps compatible steel bits seated, but does not provide the same positive retention as a mechanical lock.

Quick-Change Locking Holders

Choose a locking design when bits regularly pull out during withdrawal. The release sleeve makes changes controlled, but its diameter can restrict access to narrow recesses.

Impact-Rated Holders

Choose an impact-rated holder for an impact driver. This is a load rating rather than a retention type: an impact-rated model may also be magnetic or quick-change, so check both specifications.

Maintenance and Care

Clear Out Swarf

Remove the holder from the tool and brush debris from the socket. Magnetic holders collect steel particles, which can stop the bit seating fully.

Check the Locking Sleeve

Check that the sleeve moves freely and retains a compatible bit before use. Follow Bosch's care instructions rather than flooding the mechanism with oil that can collect dust.

Store Clean and Dry

Wipe off moisture after damp jobs and store the holder in a dry case. Leaving it among wet fixings encourages corrosion around the socket and moving parts.

Replace Damaged Holders

Replace a holder with a bent shank, cracked body, worn socket or unreliable locking mechanism. Do not straighten it and put it back into impact service.

Why Shop for Bosch Professional Bit Holders at ITS?

ITS stocks the full Bosch Professional bit holder range, covering magnetic, quick-change and impact-rated options for different fixing jobs. Stock is held in our own warehouse, ready for next-day delivery, so you can order the holder that matches your driver and access requirements. Check live availability and delivery eligibility when ordering.

Bosch Professional Bit Holder FAQs

What is a bit holder used for?

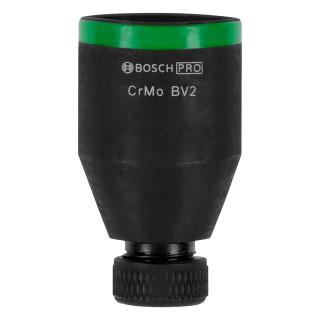

A bit holder connects a compatible screwdriver bit to your drill or driver, adding reach and making bit changes easier. It holds the bit; the bit's tip must still match the screw head. For square-drive sockets, use suitable Bosch Professional Socket Drive Adaptors rather than forcing a socket onto a screwdriver bit holder.

Is the Bosch bit holder magnetic?

Magnetic Bosch holders are available, but check the individual model rather than assuming the whole range uses the same retention system. A magnet retains a compatible steel bit; whether it also holds the screw reliably depends on the holder, bit and fixing.

What is a quick change bit holder?

A quick-change holder lets you swap compatible bits without loosening the tool's chuck. Locking versions use a release mechanism, commonly a sliding sleeve, to retain and release the bit. Check the accepted bit shank and remember that quick-change does not automatically mean impact-rated.

Are Bosch bit holders any good?

They are a practical choice when the model matches the work. For general fitting, check retention and clearance; for impact driving, insist on an explicit impact rating. The badge cannot compensate for a worn bit, the wrong screw profile or using a standard holder beyond its intended application.

Where are Bosch tools made?

Bosch manufactures tools and accessories in several countries, so do not assume a Bosch bit holder is made in Germany. Country of origin varies by product. Check the packaging or product marking, or ask ITS to confirm the specific item if origin is part of your purchasing requirements.
