Bosch Laser Levels
Setting out walls or ceiling grids? Choose a laser level Bosch builds for your working distance and layout.
Bosch laser levels give fitters, chippies and groundworkers a level reference without repeatedly moving a spirit level. Check beam layout, receiver compatibility and power supply before buying. Pick the model that suits your next setting-out job.
What Jobs Are Bosch Laser Levels Best At?
- Set kitchen units and tiled splashbacks against a horizontal laser line, keeping runs aligned without marking every fixing position separately.
- Mark partition tracks and door openings with suitable vertical lines and plumb references, transferring the layout between floor and ceiling.
- Align suspended ceiling grids across a room using a horizontal laser plane, reducing repeated level checks as the framework goes up.
- Check excavation depths and drainage levels with a suitable rotary laser, compatible receiver and staff, working from an established site datum.
Choosing the Right Bosch Laser Level
Buy for the layout and working distance first; extra beams only earn their keep if you use them.
1. Match the Beam Layout to the Job

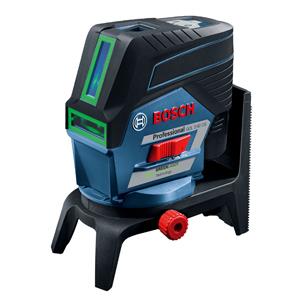

For cabinets, sockets and tile courses on one wall, start with Bosch Cross Line Laser Levels. If you regularly set out across several walls, choose additional planes rather than repeatedly repositioning a basic cross-line model.
2. Check Outdoor Receiver Compatibility
If you work outside, do not choose on beam colour alone. Daylight can wash out visible lines. Check that the laser supports a compatible receiver and that its receiver range covers your working area.
3. Choose the Right Power Supply
A Bosch 12V laser level makes sense if you already use compatible Bosch Professional 12V batteries. Check the exact battery compatibility and box contents; a bare unit may leave you needing a battery and charger before work starts.
4. Read Accuracy at Your Working Distance
Compare the stated levelling accuracy, not just maximum range. A small deviation per metre becomes more significant across a long room. Check mounting options too, especially when the beam must sit close to a ceiling or finished floor.
Who Uses Bosch Laser Levels?
Kitchen fitters, tilers and joiners use Bosch laser levels to align cabinets, tile courses and fitted furniture. Dryliners use multiple planes for partition and ceiling layouts, while groundworkers use rotary systems with receivers to transfer levels across outdoor sites.
The Basics: Understanding Bosch Laser Levels
The laser provides a reference; you still need a sound datum, a stable mounting position and a checked instrument.
1. Self-Levelling Has Limits
Self-levelling corrects small mounting slopes within the model's specified range. Outside that range, the tool warns you rather than providing a reliable level reference. A locked pendulum or slope mode does not mean the projected line is level.
2. Full Planes Reduce Repositioning

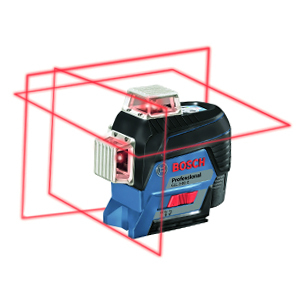

Bosch 360 Degree Laser Levels project lines around the room, with available planes depending on the model. This lets several fixing positions share one reference without moving the instrument between walls.
3. Rotary Systems Transfer Levels Across Sites

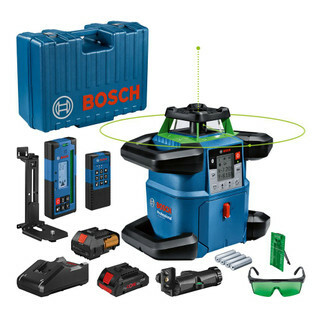

Bosch Rotary Lasers create a rotating reference plane. With a compatible receiver on a staff, you can compare ground or formation heights against your datum without needing to see the beam.
Accessories for Stable, Readable Laser Set-Out
Sort the mounting and beam detection before arriving on site; neither is guaranteed to come with the laser.
1. Tripods
Bosch Laser Level Tripods provide a stable, adjustable platform instead of balancing the instrument on materials. Check the mounting thread and height range against your laser and setting-out height.
2. Compatible Receivers
Bosch Laser Detectors help locate a supported beam when daylight or distance makes it difficult to see. Match the receiver to the exact laser model; line and rotary receivers are not automatically interchangeable.
Choose the Right Bosch Laser Level for the Job
Match the reference you need to the space you work in.
| Your Job | Laser Type | Key Features |
|---|---|---|
| Kitchen units and tile courses | Cross-line laser | Horizontal and vertical lines, suitable mounting height |
| Ceiling grids across a room | 360 degree line laser | Continuous horizontal plane, stable adjustable mount |
| Partition tracks and intersecting walls | Multi-plane laser | Suitable vertical planes and floor-to-ceiling reference |
| Groundworks and excavation checks | Rotary laser system | Compatible receiver, staff and sufficient outdoor range |
Common Buying and Usage Mistakes
- Buying a green beam and assuming it solves outdoor visibility can leave you unable to read the reference. Check receiver support for daylight work.
- Assuming every Bosch battery fits can stop the job before it starts. Confirm the specified battery platform and whether a battery and charger are included.
- Using the laser after a knock without checking accuracy risks repeating the same error across every fixing. Follow the model's accuracy-check procedure first.
- Mounting on loose boards or a vibrating platform can shift the reference during work. Use a firm base and recheck against your datum after disturbance.
Cross-Line vs 360 Degree vs Rotary Lasers
Cross-Line Lasers
Choose these for localised indoor alignment, such as cabinets and tiling. They provide straightforward horizontal and vertical references but generally need more repositioning for work around a whole room.
360 Degree Line Lasers
Choose these for room-wide fit-out and multi-wall layouts. Continuous planes reduce repositioning, but obstructions still block the beam and outdoor use requires suitable receiver support.
Rotary Lasers
Choose a suitable rotary system for transferring levels over larger areas with a receiver and staff. It suits groundworks better than a basic cross-line laser, but is not the first choice for close-range intersecting wall lines.
Maintenance and Care
Keep Optical Windows Clean
Remove loose dust gently and clean optical windows as instructed, using a soft cloth. Mortar smears and scratched windows can interfere with beam visibility.
Check Accuracy After Knocks
Run the manual's accuracy checks after a drop or suspected movement. If results fall outside the stated tolerance, stop using it for setting out and arrange servicing.
Transport and Store Properly
Switch off and engage the transport lock where fitted. Dry the instrument before closing it in its case, and keep it secured rather than loose among tools in the van.
Why Shop for Bosch Laser Levels at ITS?
ITS stocks the full Bosch laser level range, covering cross-line, 360 degree and rotary options alongside mounting and detection accessories. Stock is held in our own warehouse, ready for next-day delivery. Check the selected model's availability and kit contents before ordering.
Bosch Laser Level FAQs
How accurate is the Bosch laser level?
Accuracy depends on the model, so check its stated levelling tolerance. For example, a specification of plus or minus 0.3 mm per metre equates to plus or minus 3 mm at 10 metres under the specified conditions. Check accuracy using the manual's procedure before critical setting out and after any knock.
Will a green Bosch laser line actually show up outside?
Not reliably in bright sunlight. Green lines can be easier to see than red lines in some conditions, but beam colour does not replace a receiver. For outdoor work, choose a receiver-compatible model and check its supported working range.
Will a Bosch 12V laser level take the batteries from my drill?
Only if your batteries belong to the compatible system specified for that laser. Do not assume all Bosch batteries fit because the brand or voltage matches. Check the exact model's battery requirements, particularly when buying a body-only option.
Can I trust it straight after it has been dropped?
No. An intact casing and visible beam do not prove the instrument is still accurate. Check it using the manufacturer's procedure before continuing. If it fails the check, have it inspected rather than compensating by eye.
Does the kit include a tripod, receiver and battery?
Contents vary between packages, even when they contain the same laser. Read the supplied-items list for the exact option you are ordering. Check receiver compatibility, mounting hardware, batteries and charger separately rather than relying on the product photograph.
