FuseBox 21 Way Consumer Unit with Type 2 SPD Installation Kit
(893399)£114.55
YOU SAVE £13.59 (12%)
£100.96
EX VAT
(£121.15 INC VAT)

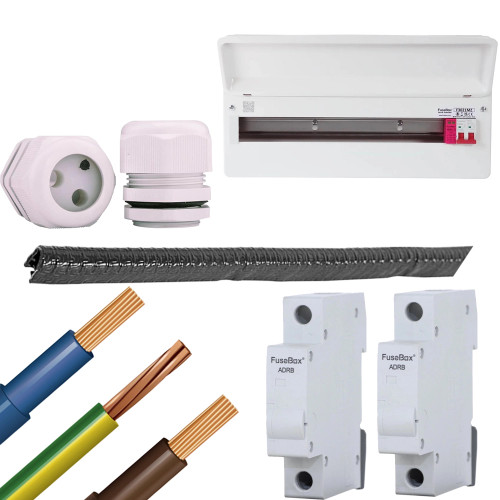

FuseBox 21 Way Consumer Unit with Type 2 SPD Installation Kit
Key Features
- FuseBox F3021MZ 21 way metal consumer unit with integrated surge protection provides 18th Edition compliant protection for larger domestic installations
- High capacity internal layout allows flexible circuit configuration using MCBs or Type A RCBOs while supporting neat and organised wiring
- Jaylow FLEXITAIL25X meter tail pack includes 25mm² double insulated live and neutral tails plus a 25mm² earth cable, BASEC approved and rated at 114A
- Unicrimp PVC grommet strip edge roll protects cables passing through metal enclosures and sharp apertures while allowing cut to length continuous installation
- FuseBox 32mm tail gland and DIN rail blank ensure secure cable entry, correct spacing and a clean professional finish inside the consumer unit
£114.55
YOU SAVE £13.59 (12%)
£100.96
EX VAT
-
Free Gift -
Promotion: -
Promotion:
-
Promotion:
-
Promotion:
-
Promotion:
-
Promotion:
Pay in 3 interest-free payments
Split your purchase of £121.15 inc VAT into 3 with no sign-up fees or late fees.
Today
1 month
2 months
- Choose PayPal at checkout.
- Fill out your details to login to PayPal.
- Select "Pay in 3" to split your payment into three low cost installments.
Added for collection
FuseBox 21 Way Consumer Unit with Type 2 SPD Installation Kit
Description
-
Product Code:FUSF3021MZBUN
-
Model Number: F3021MZ
-
Brand: FuseBox
-
Barcode: 5063780008616
-
Category: Consumer Units & Circuit Breakers
-
Taxonomy: Hardware > Power & Electrical Supplies > Circuit Breaker Panels
The FuseBox F3021MZ 21 Way Consumer Unit with SPD lets you upgrade your home's electrical security featuring Surge Protection Device.
Engineered to provide uncompromising defence against power surges and electrical anomalies, this consumer unit is an essential addition for safeguarding your household.
From surge protection to user-friendly installation, this consumer unit empowers you to take control of your electrical environment, ensuring the safety of your family and the longevity of your devices.
Shield your home's electronics with the FuseBox F3021MZ 21 Way RCBO Consumer Unit with SPD. With advanced surge protection, individual circuit safeguarding, and a sleek design, this unit ensures the safety of your family and devices.
Elevate your home's protection standards today – invest in the future of electrical safety!
To complete the installation, the Jaylow FLEXITAIL25X Meter Tail Pack provides a compliant connection between the electricity meter and consumer unit. The pack includes two 6181Y 25mm² double insulated flexible meter tails with grey outer sheaths, clearly identified with brown and blue inner cores for live and neutral connections, along with a 6491X 25mm² green and yellow earth cable for protective earthing. Manufactured to BS 6004:2012 and BS EN 50525-2-31 and BASEC approved, each conductor is rated to carry up to 114A, while the flexible stranded copper construction allows easy routing in confined spaces.
Where cables pass through metal enclosures or sharp apertures, the Unicrimp Grommet Strip Edge Roll from ITS provides reliable protection. Supplied as a 3m roll of black PVC, it can be cut to length and installed as a continuous edge strip, forming a soft protective barrier that reduces abrasion and helps preserve cable insulation. The 5mm inner gap and 8mm profile accommodate a wide range of cable sizes, while the material is rated for temperatures from -10°C to +90°C for dependable performance.
The FuseBox G32T 32mm Tail Gland ensures secure cable entry and effective strain relief, helping maintain neat and organised installations.
Completing the setup, the FuseBox ADRB DIN rail mounted blank fills unused ways, maintaining correct spacing between devices and improving overall safety and presentation.
Together, these components deliver a professional, compliant and reliable solution for modern consumer unit installations.
Authorised FuseBox Stockist
ITS are an authorised stockist of FuseBox Products, we only sell 100% genuine Power Tools and Accessories, so you can trust us for all the tools you need!
Specification
| Dimensions | 486 x 259 x 113mm |
| Buying Option | 21 Way Consumer Unit Installation Kit |
| Pack Size | 1 |
| Product Weight | 5.0kg |
| Colour | White |
| AMP Rating | 100A |
| Electrical Product Type | Consumer Unit |
| Colour Family | White |
| Number of Outgoing Ways | 21 |
| Surge Protection Fitted | Yes |
| Number Of Modules | 24 |
Product is also in :
Customer Reviews
Ask a Question
Questions Answered
Key Features
- FuseBox F3021MZ 21 way metal consumer unit with integrated surge protection provides 18th Edition compliant protection for larger domestic installations
- High capacity internal layout allows flexible circuit configuration using MCBs or Type A RCBOs while supporting neat and organised wiring
- Jaylow FLEXITAIL25X meter tail pack includes 25mm² double insulated live and neutral tails plus a 25mm² earth cable, BASEC approved and rated at 114A
- Unicrimp PVC grommet strip edge roll protects cables passing through metal enclosures and sharp apertures while allowing cut to length continuous installation
- FuseBox 32mm tail gland and DIN rail blank ensure secure cable entry, correct spacing and a clean professional finish inside the consumer unit
Description
Description
-
Product Code:FUSF3021MZBUN
-
Model Number: F3021MZ
-
Brand: FuseBox
-
Barcode: 5063780008616
-
Category: Consumer Units & Circuit Breakers
-
Taxonomy: Hardware > Power & Electrical Supplies > Circuit Breaker Panels
The FuseBox F3021MZ 21 Way Consumer Unit with SPD lets you upgrade your home's electrical security featuring Surge Protection Device.
Engineered to provide uncompromising defence against power surges and electrical anomalies, this consumer unit is an essential addition for safeguarding your household.
From surge protection to user-friendly installation, this consumer unit empowers you to take control of your electrical environment, ensuring the safety of your family and the longevity of your devices.
Shield your home's electronics with the FuseBox F3021MZ 21 Way RCBO Consumer Unit with SPD. With advanced surge protection, individual circuit safeguarding, and a sleek design, this unit ensures the safety of your family and devices.
Elevate your home's protection standards today – invest in the future of electrical safety!
To complete the installation, the Jaylow FLEXITAIL25X Meter Tail Pack provides a compliant connection between the electricity meter and consumer unit. The pack includes two 6181Y 25mm² double insulated flexible meter tails with grey outer sheaths, clearly identified with brown and blue inner cores for live and neutral connections, along with a 6491X 25mm² green and yellow earth cable for protective earthing. Manufactured to BS 6004:2012 and BS EN 50525-2-31 and BASEC approved, each conductor is rated to carry up to 114A, while the flexible stranded copper construction allows easy routing in confined spaces.
Where cables pass through metal enclosures or sharp apertures, the Unicrimp Grommet Strip Edge Roll from ITS provides reliable protection. Supplied as a 3m roll of black PVC, it can be cut to length and installed as a continuous edge strip, forming a soft protective barrier that reduces abrasion and helps preserve cable insulation. The 5mm inner gap and 8mm profile accommodate a wide range of cable sizes, while the material is rated for temperatures from -10°C to +90°C for dependable performance.
The FuseBox G32T 32mm Tail Gland ensures secure cable entry and effective strain relief, helping maintain neat and organised installations.
Completing the setup, the FuseBox ADRB DIN rail mounted blank fills unused ways, maintaining correct spacing between devices and improving overall safety and presentation.
Together, these components deliver a professional, compliant and reliable solution for modern consumer unit installations.
Authorised FuseBox Stockist
ITS are an authorised stockist of FuseBox Products, we only sell 100% genuine Power Tools and Accessories, so you can trust us for all the tools you need!
Specification
- Dimensions 486 x 259 x 113mm
- Buying Option 21 Way Consumer Unit Installation Kit
- Pack Size 1
- Product Weight 5.0kg
- Colour White
- AMP Rating 100A
- Electrical Product Type Consumer Unit
- Colour Family White
- Number of Outgoing Ways 21
- Surge Protection Fitted Yes
- Number Of Modules 24
