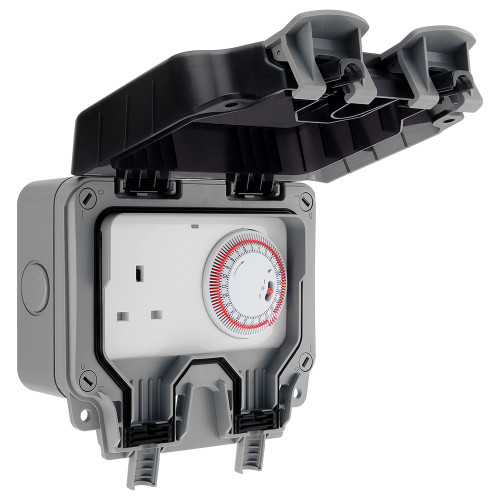

BG Electrical IP66 13A 1-Gang Outdoor Unswitched Weatherproof Time-Controlled 13A Socket
Key Features
- 24 hour mechanical timer - 1 segment = 15 minutes, with override switch
- Weather and dust protection - IP66 (with cover closed)
- LED power indicator mean the power status is visible even when the cover is down
- Angled in-line colour coded terminals with captive screws provide easy access for quick installation
- Twin earth fitted as standard for high integrity circuits
£22.99
EX VAT
-
Free Gift -
Promotion: -
Promotion:
-
Promotion:
-
Promotion:
-
Promotion:
-
Promotion:
Pay in 3 interest-free payments
Split your purchase of £27.59 inc VAT into 3 with no sign-up fees or late fees.
Today
1 month
2 months
- Choose PayPal at checkout.
- Fill out your details to login to PayPal.
- Select "Pay in 3" to split your payment into three low cost installments.
Added for collection
BG Electrical IP66 13A 1-Gang Outdoor Unswitched Weatherproof Time-Controlled 13A Socket
Description
-
Product Code:MASWP23TM24
-
Model Number: WP23TM24-02
-
Brand: BG
-
Barcode: 5050765044783
-
Category: Outdoor Sockets and Switches
-
Taxonomy: Hardware > Power & Electrical Supplies > Electrical Switches
Outdoor sockets are an ideal option for managing outdoor or garden appliances, and can be installed in gardens and patios, as well as in shed’s, outhouses and garages.
This 13A single unswitched outdoor power socket features a 24 hour timer, ideal for controlling outdoor items such as sprinklers or outdoor lights so they can turn on and off by themselves at appropriate times throughout the day. An override switch with LED indicator allows you to turn items on and off manually without disturbing the regular timer settings.
IP66 rated and designed to protect against water and dust ingress in the most arduous of conditions.
Made with a robust, high impact UV stable housing, multiple gland entry positions , quick wire entry, and an ergonomic design. The LED indicator can also be seen throu
What does IP66 mean?
IP – Ingress Protection, relates to how resistant your product is against dust, water and debris. The first digit gives you an idea of the intrusion protection of the device so that means how well it stands up against dust and debris getting into it. The second digit is all about protection from water so if you’re working in an environment that is frequently wet or raining then this number is definitely worth keeping an eye on.
In this instance, the switch is completely dust-tight. Vacuum sealed and tested against a continuous airflow as well as offering protection against a direct, high-pressure jet from any angle.
Authorised BG Stockist
ITS are an authorised stockist of BG Products, we only sell 100% genuine Power Tools and Accessories, so you can trust us for all the tools you need!
Product is also in :
Specification
| Dimensions | 156 x 175 x 85mm |
| Buying Option | 13A 1G Timer Socket |
| Product Weight | 0.7kg |
| Product Material | Polycarbonate |
| Voltage | 250V |
| Colour | Grey |
| IP Rating | IP66 |
| AMP Rating | 13A |
| No. of Gangs | 1 |
| Electrical Product Type | Socket |
| Socket Type | Timer Socket |
| Neon Indicator | Yes |
| USB Sockets | No |
| Screwed/Screwless | Screwed |
| Colour Family | Grey |
| Terminal Capacity | 3x 2.5mm², 3x 4.0mm², 2x 6.0mm² |
| No. Of Earth Terminals | 1 |
Warranty Information
This product comes with a standard one year warranty covering manufacturing fault. For more information on this products specific warranty details please contact us directly on Email: sales@its.co.uk or Phone: 0208 532 5000 (Monday - Saturday 8am - 5pm) with the ITS Order Ref (above) or the Product Title
Customer Reviews
Ask a Question
Questions Answered
Key Features
- 24 hour mechanical timer - 1 segment = 15 minutes, with override switch
- Weather and dust protection - IP66 (with cover closed)
- LED power indicator mean the power status is visible even when the cover is down
- Angled in-line colour coded terminals with captive screws provide easy access for quick installation
- Twin earth fitted as standard for high integrity circuits
Description
Description
-
Product Code:MASWP23TM24
-
Model Number: WP23TM24-02
-
Brand: BG
-
Barcode: 5050765044783
-
Category: Outdoor Sockets and Switches
-
Taxonomy: Hardware > Power & Electrical Supplies > Electrical Switches
Outdoor sockets are an ideal option for managing outdoor or garden appliances, and can be installed in gardens and patios, as well as in shed’s, outhouses and garages.
This 13A single unswitched outdoor power socket features a 24 hour timer, ideal for controlling outdoor items such as sprinklers or outdoor lights so they can turn on and off by themselves at appropriate times throughout the day. An override switch with LED indicator allows you to turn items on and off manually without disturbing the regular timer settings.
IP66 rated and designed to protect against water and dust ingress in the most arduous of conditions.
Made with a robust, high impact UV stable housing, multiple gland entry positions , quick wire entry, and an ergonomic design. The LED indicator can also be seen throu
What does IP66 mean?
IP – Ingress Protection, relates to how resistant your product is against dust, water and debris. The first digit gives you an idea of the intrusion protection of the device so that means how well it stands up against dust and debris getting into it. The second digit is all about protection from water so if you’re working in an environment that is frequently wet or raining then this number is definitely worth keeping an eye on.
In this instance, the switch is completely dust-tight. Vacuum sealed and tested against a continuous airflow as well as offering protection against a direct, high-pressure jet from any angle.
Authorised BG Stockist
ITS are an authorised stockist of BG Products, we only sell 100% genuine Power Tools and Accessories, so you can trust us for all the tools you need!
Specification
- Dimensions 156 x 175 x 85mm
- Buying Option 13A 1G Timer Socket
- Product Weight 0.7kg
- Product Material Polycarbonate
- Voltage 250V
- Colour Grey
- IP Rating IP66
- AMP Rating 13A
- No. of Gangs 1
- Electrical Product Type Socket
- Socket Type Timer Socket
- Neon Indicator Yes
- USB Sockets No
- Screwed/Screwless Screwed
- Colour Family Grey
- Terminal Capacity 3x 2.5mm², 3x 4.0mm², 2x 6.0mm²
- No. Of Earth Terminals 1
Warranty Information
Warranty Information
This product comes with a standard one year warranty covering manufacturing fault. For more information on this products specific warranty details please contact us directly on Email: sales@its.co.uk or Phone: 0208 532 5000 (Monday - Saturday 8am - 5pm) with the ITS Order Ref (above) or the Product Title
