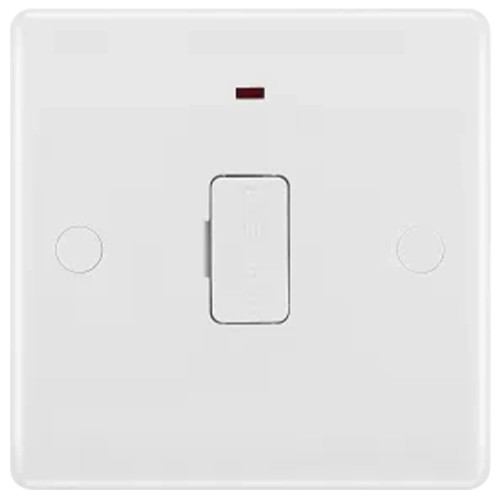

BG 856-01 Nexus Series White Moulded 13A Unswitched Fused Connection Unit with LED Indicator
Key Features
- 13A Rated
- Ideal for spur circuits and hard wired power appliances
- Angled colour coded terminals with captive screws provide easy access for quick installation
- LED power Indicator reliable and low power
- Screw covers for sleek appearance
£3.45
EX VAT
Added for collection
BG 856-01 Nexus Series White Moulded 13A Unswitched Fused Connection Unit with LED Indicator
Description
-
Product Code:MAS856
-
Model Number: 856-01
-
Brand: BG
-
Barcode: 5050765001519
-
Taxonomy: Hardware > Tool Accessories > Tool Sockets
-
Category: Sockets & Switches
The BG 856-01 Nexus Series White Moulded 13A Unswitched Fused Connection Unit with LED Indicator is the kind of reliable, no-fuss fused connection unit that quietly does its job and then steps out of sight.
Designed with a clean, softly rounded white plate made from robust thermoset urea, it resists fading, scratching, and discoloration while its concealed screw caps give a sleek, uncluttered finish.
At its core is a 13 amp fuse and a handy LED power indicator that confirms when the circuit is live, all neatly packed into a standard back‑box depth of just 35 mm.
It even comes with fixings and instructions, so no last‑minute scrambles on the install site. Perhaps best of all, it’s treated with an anti‑microbial coating that combats 99 % of harmful bacteria including MRSA, E‑Coli, Salmonella, and Klebsiella pneumoniae.
If you want a clean, safe, and professional‑grade outlet without any bells or whistles, this unit fits the bill perfectly.
Specification
| Dimensions | 86 x 86 x 23.3mm |
| Buying Option | 13A Unswitched Fused Connection Unit with LED Indicator |
| Pack Size | 1 |
| Product Weight | 0.04kg |
| Voltage | 240V |
| Colour | White |
| IP Rating | IP20 |
| AMP Rating | 13A |
| Standards/Approvals | BS 1363-4 |
| No. of Gangs | 1 |
| Electrical Product Type | Fused Connection Unit - Switched |
| Neon Indicator | Yes |
| Flex Outlet | No |
| Switch Type | Switch |
| Screwed/Screwless | Screwed |
| Depth | 35mm |
| Colour Family | White |
| Terminal Capacity | 3x 2.5mm² |
| Number of Poles | Double Pole |
| No. Of Earth Terminals | 2 |
