Milwaukee SHOCKWAVE Screwdriver Bits & Bit Holders Milwaukee SHOCKWAVE Screwdriver Bits & Bit Holders

Milwaukee SHOCKWAVE Screwdriver Bits & Bit Holders

Driving fixings all day? Milwaukee Shockwave screwdriver bits are impact-rated bits for repeated screwdriving.

Match the tip to the screw before worrying about length: a PZ2 is not a PH2. Joiners, sparkies and fitters use these bits and holders for studwork, containment and cabinet fitting. Choose the profile and reach your job needs.

What Jobs Are Milwaukee Shockwave Screwdriver Bits Best At?

  • Drive timber screws into studwork and noggins with the matching PZ or Torx bit, keeping the driver square so the tip stays seated under load.
  • Fix cable tray brackets and containment supports using the correct screw profile, with a magnetic holder helping retain compatible steel screws while positioning them.
  • Fit cabinet hinges and drawer runners with controlled driver settings to avoid stripping small screw heads or pulling fixings through thin material.
  • Reach recessed fixings inside cupboards and service enclosures with longer bits or a suitable holder, checking there is enough clearance to keep the driver straight.
  • Replace worn PH2 and PZ2 bits during repetitive installation work before rounded tips start damaging fresh fixings.

Choosing the Right Milwaukee Shockwave Screwdriver Bits

Buy for the screw head first, the access second and the workload third. Extra length will not rescue the wrong tip.

1. Match the Profile and Size Exactly

Use Milwaukee Shockwave PH2 bits for PH2 screws and Milwaukee Shockwave PZ2 bits for PZ2 screws. They look similar but are not interchangeable. With Milwaukee Shockwave Torx bits, check the exact T size; a loose fit damages both the recess and the bit.

2. Keep the Working Length Sensible

Use a short insert bit in a suitable holder for accessible fixings. Choose a longer bit where the screw sits inside a recess, but avoid unnecessary reach that makes alignment awkward. Check that the shank is suitable if you intend to lock the bit directly into an impact driver.

3. Buy Spares for Repeated Fixings

If most of your day uses one screw size, buy replacement packs of that profile rather than another mixed set. Browse Milwaukee SHOCKWAVE Screwdriver Bits for replacements, or choose Milwaukee SHOCKWAVE Drill & Screwdriver Bit Sets when the job involves several fixing types and pilot drilling.

4. Check the Holder, Not Just the Bit

For impact work, use an impact-rated holder as well as an impact-rated bit. Compare Milwaukee Impact Bit Holders for the required length and retention mechanism. Magnetic retention and mechanical locking are different features, so check which the particular holder provides.

Who Uses Milwaukee Shockwave Bits and Holders?

Chippies use them for timber framing and second-fix work, while sparkies and mechanical fitters keep different profiles ready for brackets, containment and equipment housings. Kitchen fitters and maintenance teams benefit from carrying spare common sizes alongside longer bits for recessed screws, rather than trying to make one worn PZ2 do every job.

The Basics: Understanding Milwaukee Shockwave Impact Bits

Impact drivers deliver repeated rotational blows. The bit and holder both need to suit that loading, but the right driver setting and a properly seated tip still matter.

1. What the Shock Zone Does

The Shockwave design uses a torsion zone that allows controlled twisting under load, helping absorb impact stresses. It does not make the bit unbreakable or stop a poorly seated tip from slipping out of a screw.

2. How Bits and Holders Fit Together

These bits use a standard 1/4-inch hex drive, but shank shape affects retention. Short insert bits normally need a holder; power bits with a suitable retaining groove can lock directly into compatible quick-release impact chucks. Check the individual bit rather than assuming every length fits the same way.

Useful Kit for Awkward Fixings and Bit Storage

Keep the right access attachment and somewhere secure for spare bits, rather than losing time forcing a straight driver into a tight corner.

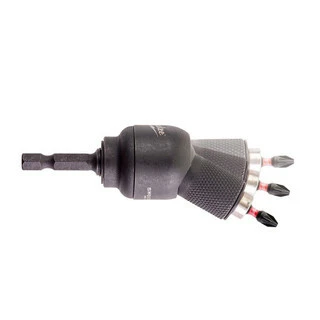

1. Angled and Flexible Bit Holders

Use Milwaukee Angled & Flexible Bit Holders where a cabinet side or adjacent pipe prevents straight access. Check the attachment's impact compatibility and torque limits first; fitting an impact bit does not make the attachment impact-rated.

2. Bit Cases and Organisers

A compatible bit case keeps profiles separated and makes missing sizes obvious before leaving the van. Choose slots that suit your bit lengths so longer bits are not left loose in the bottom of the tool bag.

Choose the Right Milwaukee Shockwave Bits for the Job

Start with the fixing specification, then choose the bit length and holder.

Your Job Bit or Holder Type Key Features
Repeated driving of PZ2 timber screws PZ2 replacement bit pack Correct Pozidriv profile, impact rating and spare tips for repeated use
Installing brackets supplied with PH2 screws PH2 bit with suitable holder Exact Phillips fit and sufficient clearance around the fixing
Driving Torx construction screws Torx bit in the specified T size Full engagement with the recess and a length suited to the screw position
Reaching recessed cabinet fixings Longer bit or extended holder Enough working reach without fouling the surrounding material
Switching between different maintenance fixings Mixed bit set and compatible holder Useful profile selection, secure storage and straightforward bit changes

Common Buying and Usage Mistakes

  • Treating PH2 and PZ2 as interchangeable causes poor engagement and damaged screw heads. Identify the recess and use the matching profile.
  • Pairing an impact-rated bit with an unsuitable holder leaves a weak point in the drive assembly. Check that both components are approved for impact use.
  • Running every fixing at full power can strip threads, bury heads or snap screws. Start with a lower setting and stop when the fixing is seated.
  • Choosing the longest bit available makes accessible screws harder to control. Use only the reach needed to clear the surrounding work.
  • Continuing with a rounded tip ruins more fixings than replacing the bit costs. Change it when engagement becomes loose or it repeatedly slips from sound screw heads.

Short Insert Bits vs Long Power Bits vs Bit Holders

Short Insert Bits

These suit frequent tip changes and economical replacement of commonly worn profiles. They normally need a separate holder, so check the combined length where access is tight.

Long Power Bits

These reach recessed screws without a bulky holder immediately behind the tip. Choose a suitable retaining shank for direct chuck fitting, and avoid excess length where a shorter assembly would be easier to align.

Bit Holders

These let you keep the holder fitted while swapping insert bits. They suit mixed fixing work, but add another connection and extra bulk; check retention, impact rating and clearance before buying.

Maintenance and Care

Clear Dust and Metal Swarf

Remove the bit or holder from the driver before cleaning. Brush debris from the tip and holder opening, especially around magnets where steel swarf collects and can prevent proper seating.

Store Dry and Separate

Wipe damp bits dry before closing the case. Keep them away from wet rags and leaking consumables in the van to reduce corrosion and keep size markings readable.

Replace Damaged Tips

Check for rounded edges, chips, cracks and bent shanks. Replace damaged bits rather than grinding the tip back, which changes the profile and can compromise its strength.

Check Holder Retention

Make sure bits seat fully and any locking sleeve operates freely. Stop using a holder that releases bits unexpectedly or has a cracked body; follow its care instructions rather than packing the mechanism with grease.

Your Milwaukee Shockwave Bits and Holders Range, Ready to Go

ITS stocks the full Milwaukee Shockwave screwdriver bits and bit holders range, covering replacement profiles, different working lengths, multipacks and sets. It's held in our own warehouse, in stock and ready for next-day delivery. If you're also choosing a driver, browse Milwaukee M18 Impact Drivers alongside the bits your fixings require. Check individual stock status and delivery availability when ordering.

Milwaukee Shockwave Screwdriver Bits and Bit Holders FAQs

Are Milwaukee Shockwave bits good?

They are a sensible choice for repeated impact screwdriving, with an impact-rated design and a torsion zone intended to absorb impact stresses. They are still consumables: the wrong profile, poor alignment or excessive torque will damage them. Correct fit matters more than the name on the bit.

Do Shockwave bits fit any impact driver?

They use a standard 1/4-inch hex drive, so compatibility is not restricted to Milwaukee drivers. However, the shank must suit the chuck's retention system. Short insert bits generally need a compatible impact-rated holder rather than fitting directly into a quick-release chuck.

What is a Shockwave bit holder?

It connects a compatible screwdriver bit to the driver, letting you change tips without removing the holder from the chuck. Milwaukee Shockwave bit holders are designed for impact applications, but their length, magnetic features and locking mechanisms vary by model.

Are Shockwave bits sold in packs?

Yes. Options include replacement packs of one profile and mixed sets containing different sizes or types. Check the listed contents and quantities: a mixed set is useful for varied maintenance work, while a pack of your main fixing size makes more sense for repetitive installation.

How long do Shockwave bits last?

There is no reliable fixed screw count. Life depends on screw quality, driving torque, material, alignment and whether the profile fits properly. Replace a bit when its edges round off, it chips or it starts slipping from undamaged screw heads; do not wait until it breaks.

Are Shockwave bit holders magnetic?

Magnetic models are available, but check the individual specification rather than assuming every holder works identically. A Milwaukee Shockwave magnetic bit holder can assist with bit retention and positioning compatible steel screws. Magnetic assistance is not the same as a mechanical lock, and it will not hold every screw material.

What length Shockwave bits are available?

Common lengths include 25mm insert bits and longer 50mm and 90mm bits, with availability depending on the profile and pack. Check the stated length before ordering. A 25mm bit used in a holder has a different overall working length from a longer bit fitted directly into the driver.

Are Shockwave bits colour coded?

Many Shockwave screwdriver bits use coloured identification rings to help distinguish profiles. Markings vary across products, so check the stamped profile and size rather than relying on colour alone. Two bits from the same profile family can still be different sizes.
