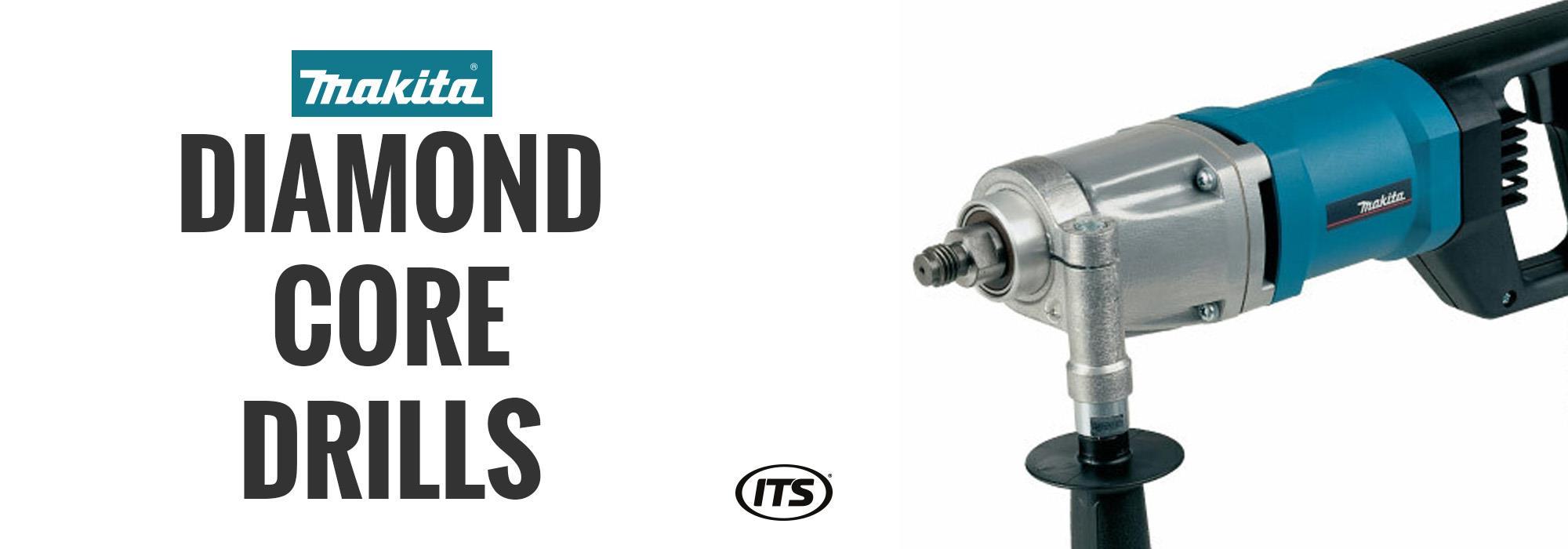

Makita Diamond Core Drills
Makita diamond core drills are for clean, accurate holes through concrete and masonry when a breaker would make a mess.
When you've got pipework, vents, waste runs or cable routes to get through block and concrete, you need controlled power and a steady cut. Makita diamond drilling machines give you the torque and gearing for wet or dry coring, so you hit size, line up and depth without blowing the wall out. Pick the right core setup and you'll drill cleaner, faster, and with less patching after.
What Jobs Are Makita Diamond Core Drills Best At?
- Drilling accurate service penetrations through blockwork and concrete for soil pipes, boiler flues, extractor ducts, and sleeve installs without cracking the surrounding face.
- Coring clean holes for electrical and mechanical installs where you need a tidy finish around trunking, conduit, and fire-stopping rather than chasing and patching.
- Working on refurb jobs where controlled drilling matters, using wet core drilling to keep dust down and stop the bit overheating on dense concrete.
- Dry coring masonry and softer materials on occupied sites when you need quick set-up, then pairing it with proper dust control to avoid coating the room in grit.
- Running larger diameter cores where high torque and steady gearing stop the drill snatching, especially when you hit harder aggregate or an awkward angle.
Choosing the Right Makita Diamond Core Drill
Sorting the right one is simple: match the drill and core method to the material and the hole size, not what you hope it'll cope with.
1. Wet core vs dry core
If you're coring dense concrete or doing repeated holes, go wet core drills and set up water properly, because it keeps the segment cool and the cut smooth. If you're only doing the odd hole in masonry and need a fast set-up, dry core drills make sense, but only if you can control dust and avoid glazing the core.
2. Hole diameter and torque
If you're stepping into larger diameters, you need a Makita high torque core drill with the right gearing, otherwise it will snatch and punish your wrists. For smaller service holes, a lighter machine is easier to control and less hassle on ladders and tight plant rooms.
3. Hand-held vs rig use
If the hole has to be dead square, repeated, or you're working big cores, use a drill that's designed to be rig-mounted and do it properly. If access is tight and you're doing one-off penetrations, hand-held can work, but only if you can brace safely and keep the pilot steady.
4. Power and site set-up
If you're on mains all day, Makita electric diamond core drills are the straightforward choice for consistent power. If you're working in occupied areas, plan the full set-up first, meaning water management for wet drilling or a proper extractor and shroud for dry, because the mess is what slows you down.
Makita Diamond Core Drills FAQs
Can I use Makita diamond core drills hand-held, or do I need a stand?
You can do some work hand-held, but once you're into larger diameters or you need the hole dead square, a stand is the right way. It keeps the core steady, reduces snatch, and stops you chewing the hole out of round.
Are these Makita concrete core drills suitable for reinforced concrete?
The drill will handle the load, but reinforced concrete is mainly about the core bit you fit and how you run it. If you expect rebar, use the correct diamond core and keep the feed steady, because forcing it is what stalls the drill and kills the segments.
Wet core drills sound messy. Is it actually worth it?
Yes, for hard concrete and repeated holes it is worth it because it cuts faster, runs cooler, and leaves a cleaner finish. The trick is controlling the water and slurry from the start, so you are not flooding a finished room or making a slip hazard.
Can I dry core indoors without wrecking the place with dust?
You can, but only if you treat dust control as part of the set-up, not an afterthought. Use a proper shroud and extractor, take your time, and let the core cut, because rushing it is what overheats the bit and fills the room with fine dust.
What's the main cause of a diamond core bit stopping cutting?
Overheating and glazing, usually from too much pressure, not enough cooling, or using the wrong core for the material. Back off, keep the cut clear, and if needed dress the core properly rather than leaning on the drill and burning it out.
Who Uses Makita Core Drills on Site?
- Plumbers and heating engineers drilling for waste, soil, and flue routes, because a proper Makita concrete core drill keeps the hole round and the brickwork intact.
- HVAC and ventilation fitters coring for ducting and condensate lines, where accuracy saves time on making good and helps you hit brackets and falls first time.
- Sparks and data installers needing clean penetrations for containment and cable runs, especially on refurbs where you cannot be smashing walls about.
- General builders and maintenance teams doing mixed substrates day to day, keeping a Makita diamond drilling tool in the van for the jobs that always turn up mid-shift.
The Basics: Understanding Diamond Core Drilling
Diamond core drilling is about cutting a clean cylinder out of the wall or slab, not smashing it to bits. The method you choose changes the finish, the speed, and the mess.
1. Wet coring (clean cut, cooler core)
Water cools the diamond segments and flushes the slurry out, so the core stays sharp and the drill runs smoother in hard concrete. It is the go-to for Makita professional core drills when you're doing bigger diameters or multiple holes and want consistent results.
2. Dry coring (fast set-up, dust control matters)
Dry core drilling is practical for masonry and lighter materials where water is a pain, but it only works properly with good dust extraction and steady pressure. Push too hard and you overheat the segments, then it stops cutting and you waste time dressing the core back in.
3. Torque and gearing (stops snatch, keeps it round)
Makita diamond drilling machines are built with the gearing and control to keep the core turning under load. That's what keeps holes round and on line, especially when you hit tougher aggregate or the bit starts to bind.
Diamond Core Accessories to Keep You Drilling
The drill is only half the story; the right accessories stop binding, reduce mess, and save you burning out cores on the first job.
1. Diamond core bits and segments
Match the core to the material, because the wrong bit is what causes glazing, slow cutting, and overheating. Keep a couple of common sizes ready so you are not trying to bodge a pipe through an undersized hole.
2. Core drill stands and fixings
A proper stand takes the fight out of larger holes and keeps everything square, which is what you need for neat sleeves and repeatable penetrations. It also reduces snatch and wrist strain when the core starts to bite.
3. Water feed kits and slurry control
If you are wet coring, sort the water feed and collection up front, because chasing slurry across finished floors is how you lose an hour and upset the client. A controlled feed keeps the core cutting and stops cooking the segments.
4. Dust extraction adaptors and shrouds
For dry core drills, a decent shroud and adaptor is the difference between a manageable job and a room full of dust. It keeps the cut visible, protects the motor, and saves the clean-up that no one priced for.
Why Shop for Makita Diamond Core Drills at ITS?
Whether you need Makita core drills for quick masonry penetrations or heavy duty Makita diamond drilling machines for repeated concrete coring, we stock the proper trade range in one place. It's all held in our own warehouse, ready for next day delivery, so you can order what you need and get drilling on tomorrow's shift.
